Model no.Z070WV9309

Z070WV9309 7-Inch 800 × 480 LCD Display Module

Z070WV9309 is a 7-inch lcd display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Brightness: 500 cd/m²
Resolution: 800 × 480 pixels
Driver IC: SC7283
Operating Temperature: -30 to 85 ℃
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 800 × 480 pixels
Display Mode: Normally black,Transmissive
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, storage temperature against the latest approved specification before design-in.

Z070WV9309 product introduction

Z070WV9309 is a 7-inch lcd display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 500 cd/m². Driver IC: SC7283. Operating Temperature: -30 to 85 ℃. Use these published characteristics to compare Z070WV9309 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z070WV9309. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z070WV9309 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Brightness: 500 cd/m²
Resolution: 800 × 480 pixels
Driver IC: SC7283
Operating Temperature: -30 to 85 ℃
Screen Size: 7 inch

Technical specifications

Z070WV9309 technical parameters
Parameter	Value
Dimensional Outline	165104.445.2 Mm
Active Area	152.4 × 91.44 mm
Viewing Angle	85/85/85/85
Brightness	500 cd/m²
Working Temperatures	-30 To 85 Degree
Resolution	800 × 480 pixels
Model Size (WHT)	165104.445.2 mm
Display Mode	Normally Black,Transmissive
Viewing	IPS
Pin Count	40 pin
Driver IC	SC7283
Operating Temperature	-30 to 85 ℃
Screen Size	7 inch

Confirm interface, storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z070WV9309 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z070WV9309 technical parameters
Parameter	Value
Pin Count	40 pin
Driver IC	SC7283

Product photographs

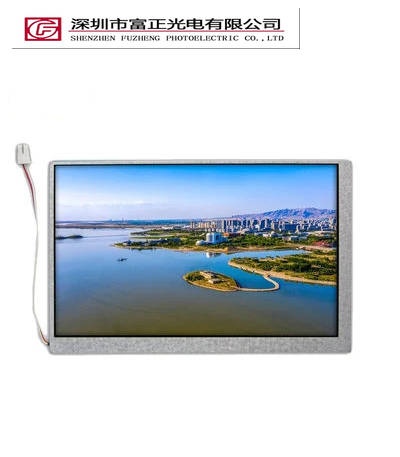

Z070WV9309 product view 1

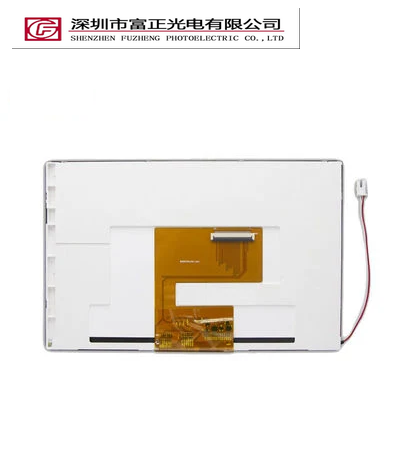

Z070WV9309 product view 2

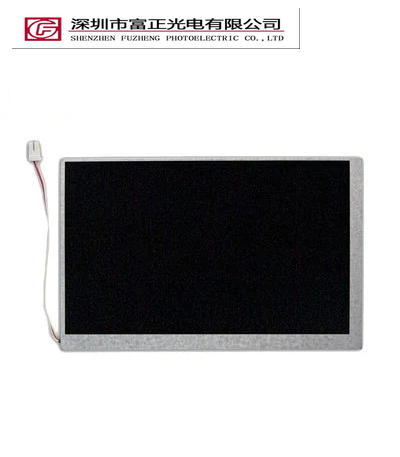

Z070WV9309 product view 3

Mechanical drawings & documents

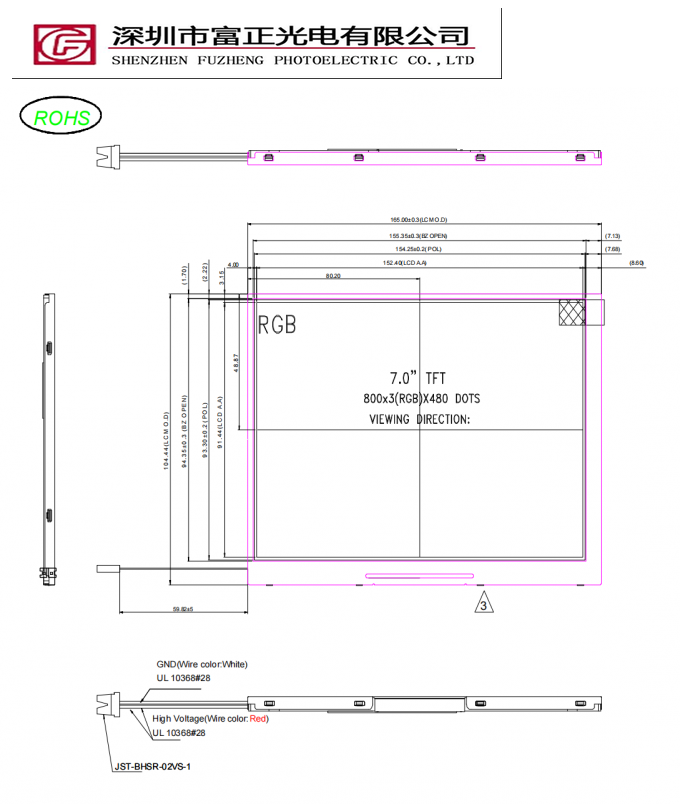

Mechanical reference 1 — open full size to inspect dimensions.

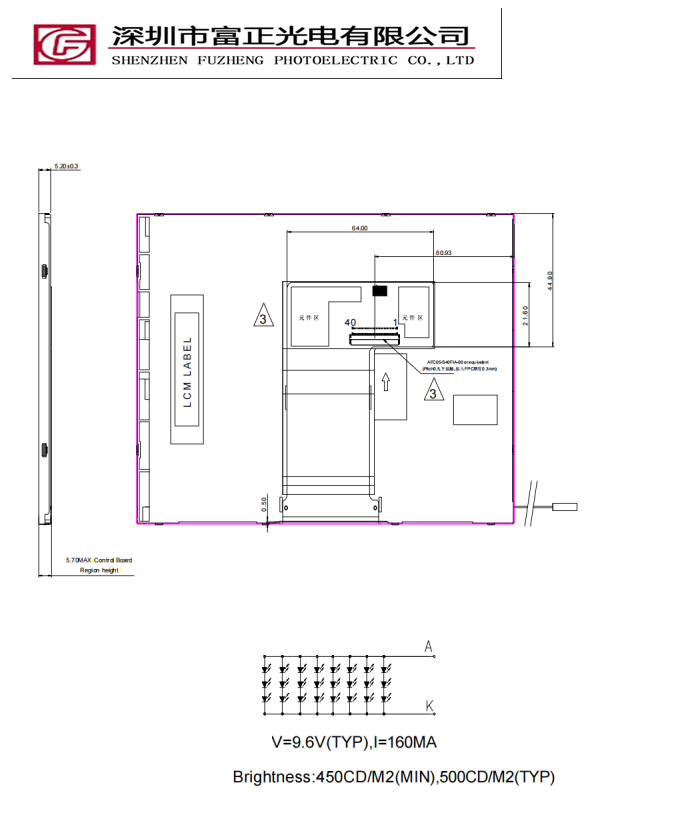

Mechanical reference 2 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z070WV9309 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z070WV9309 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WV9309 configuration.

Z070WV9309 frequently asked questions

What specifications are listed for Z070WV9309?

Brightness: 500 cd/m²; Resolution: 800 × 480 pixels; Driver IC: SC7283; Operating Temperature: -30 to 85 ℃; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z070WV9309 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z070WV9309?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WV9309 so the exact assembly can be reviewed.

Where can I find the drawing for Z070WV9309?

The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z070WV9309 sample?

Include the model Z070WV9309, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
