Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z070WV30
Z070WV30 7-Inch 800 × 480 LCD Display Module
Z070WV30 is a 7-inch lcd display module with 800 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 800 × 480 pixels
- Module Dimensions: 165.4 × 104.59 × 5.8 mm
- Interface: LVDS
- Brightness: 500 cd/m²
- Driver IC: EK9713B+EK73002A
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Resolution
- 800 × 480 pixels
- Interface
- LVDS
- Viewing Angle
- 85/85/85/85
Specification confirmation. Confirm display mode, operating temperature, storage temperature against the latest approved specification before design-in.
Z070WV30 product introduction
Z070WV30 is a 7-inch lcd display module with 800 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 165.4 × 104.59 × 5.8 mm. Brightness: 500 cd/m². Driver IC: EK9713B+EK73002A. Use these published characteristics to compare Z070WV30 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z070WV30 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z070WV30 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 800 × 480 pixels
- Module Dimensions: 165.4 × 104.59 × 5.8 mm
- Interface: LVDS
- Brightness: 500 cd/m²
- Driver IC: EK9713B+EK73002A
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 800 × 480 pixels |
| Module Dimensions | 165.4 × 104.59 × 5.8 mm |
| Active Area | 152.4 × 91.44 mm |
| Interface | LVDS |
| Viewing Angle | 85/85/85/85 |
| Brightness | 500 cd/m² |
| Viewing Direction | IPS/ALL |
| Model Size (W*H*T) | 165.4*104.59*5.8mm |
| Viewing | IPS |
| Pin Count | 40 pin |
| Driver IC | EK9713B+EK73002A |
| Screen Size | 7 inch |
Confirm display mode, operating temperature, storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z070WV30 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 40 pin |
| Driver IC | EK9713B+EK73002A |

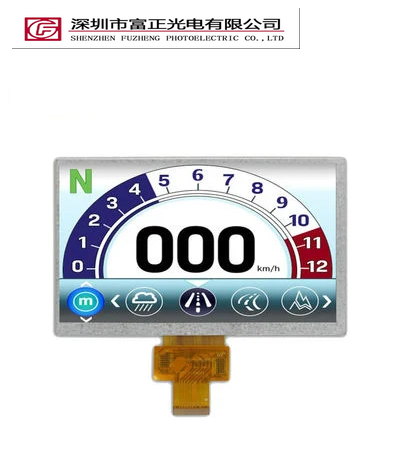

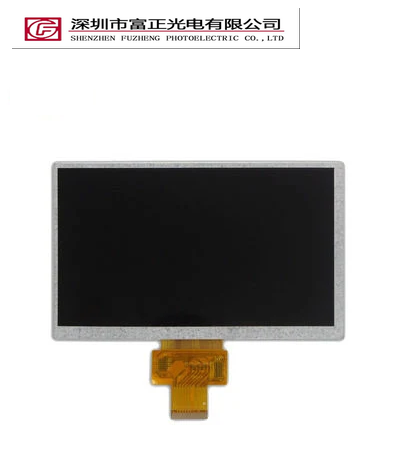

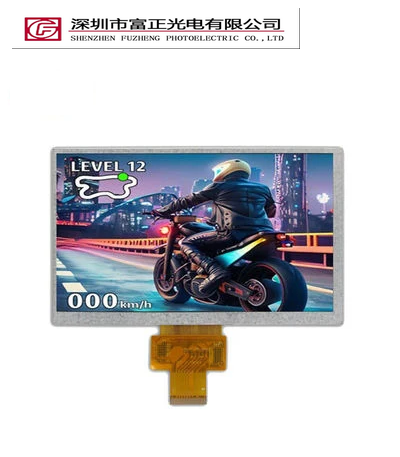

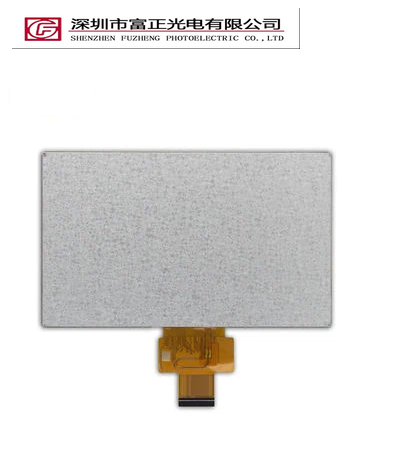

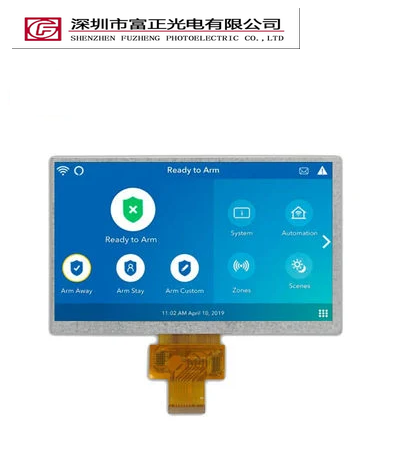

Product photographs

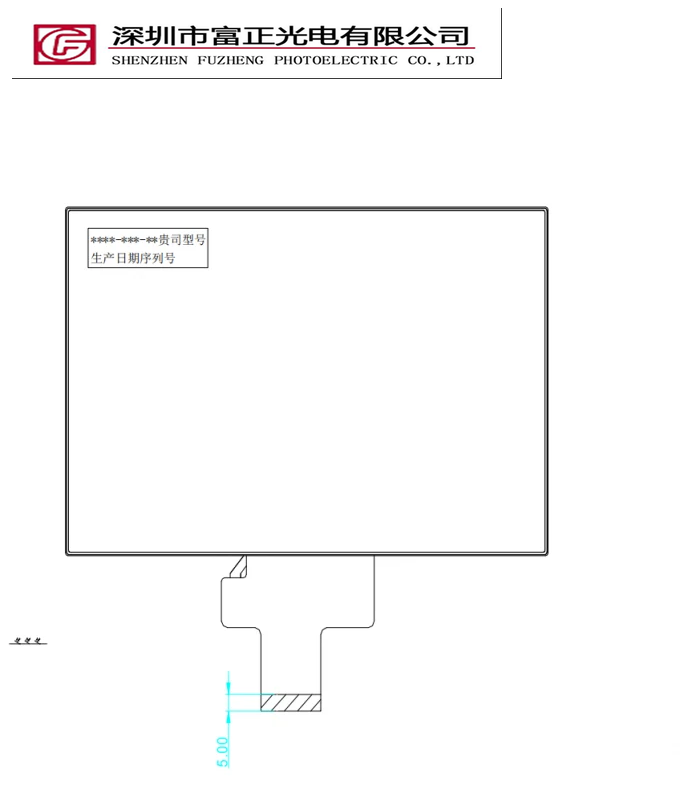

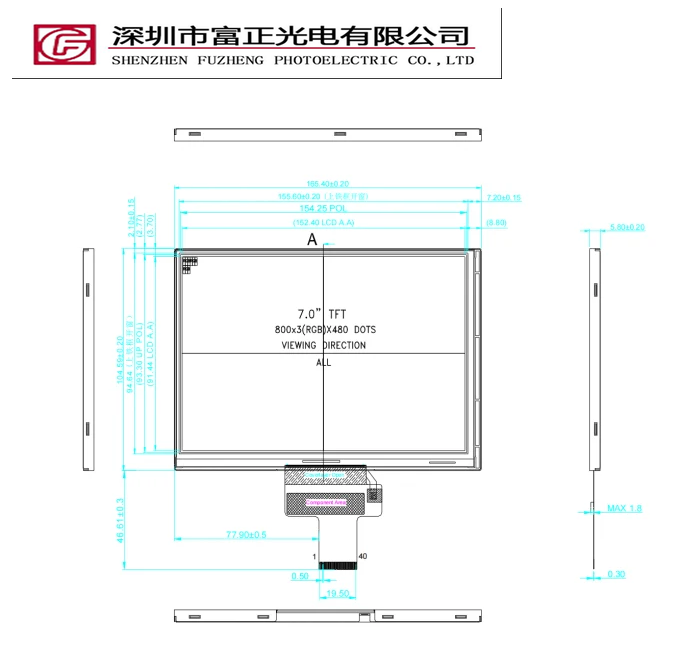

Mechanical drawings & documents
Request the Z070WV30 mechanical drawing and datasheet with your project inquiry. Confirm the outline, active area, mounting features and FPC position before finalizing the enclosure.
Application & selection guidance
Z070WV30 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WV30 configuration.
Z070WV30 frequently asked questions
What specifications are listed for Z070WV30?
Resolution: 800 × 480 pixels; Module Dimensions: 165.4 × 104.59 × 5.8 mm; Interface: LVDS; Brightness: 500 cd/m²; Driver IC: EK9713B+EK73002A; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z070WV30 connect to a host system?
Z070WV30 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z070WV30?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WV30 so the exact assembly can be reviewed.
Where can I find the drawing for Z070WV30?
Request the mechanical drawing and electrical datasheet for Z070WV30. Include available enclosure space, mounting method and FPC routing constraints so the correct assembly documents can be supplied.
What should I send when requesting a Z070WV30 sample?
Include the model Z070WV30, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z070WV30 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
