Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z070WV29

Z070WV29 7-Inch 800 × 480 LCD Display Module

Z070WV29 is a 7-inch lcd display module with 800 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.

LVDS
Resolution: 800 × 480 pixels
Module Dimensions: 165.4 × 104.59 × 9.5 mm
Interface: LVDS
Brightness: 500 cd/m²
Driver IC: SC7283
Operating Temperature: -30 to 85 ℃
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 800 × 480 pixels
Interface: LVDS

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z070WV29 product introduction

Z070WV29 is a 7-inch lcd display module with 800 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 165.4 × 104.59 × 9.5 mm. Brightness: 500 cd/m². Driver IC: SC7283. Operating Temperature: -30 to 85 ℃. Use these published characteristics to compare Z070WV29 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z070WV29 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z070WV29 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Module Dimensions: 165.4 × 104.59 × 9.5 mm
Interface: LVDS
Brightness: 500 cd/m²
Driver IC: SC7283
Operating Temperature: -30 to 85 ℃
Screen Size: 7 inch

Technical specifications

Z070WV29 technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Module Dimensions	165.4 × 104.59 × 9.5 mm
Active Area	152.4 × 91.44 mm
Interface	LVDS
Brightness	500 cd/m²
Model Size (WHT)	165.4104.599.5mm
Viewing	IPS
Pin Count	20 pin
Driver IC	SC7283
Operating Temperature	-30 to 85 ℃
Storage Temperature	-40 to 95 ℃
Screen Size	7 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z070WV29 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z070WV29 technical parameters
Parameter	Value
Interface	LVDS
Pin Count	20 pin
Driver IC	SC7283

Product photographs

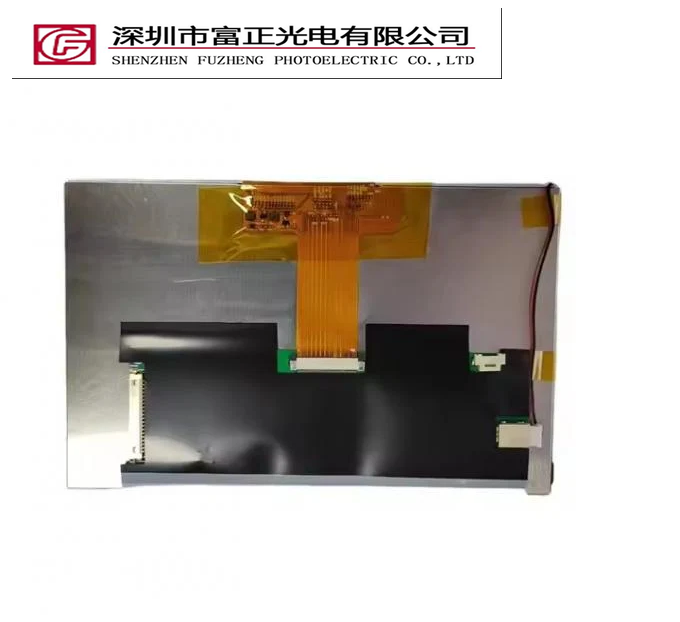

Z070WV29 product view 1

Z070WV29 product view 2

Mechanical drawings & documents

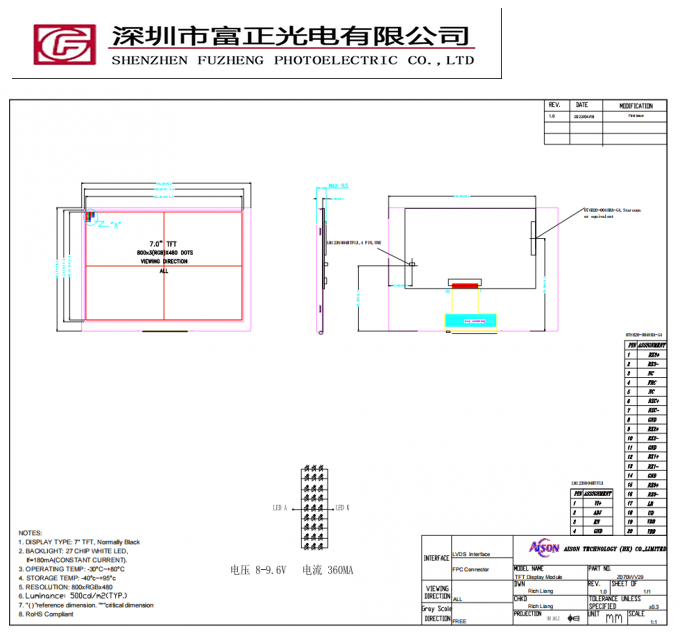

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z070WV29 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z070WV29 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 800 × 480 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WV29 configuration.

Z070WV29 frequently asked questions

What specifications are listed for Z070WV29?

Resolution: 800 × 480 pixels; Module Dimensions: 165.4 × 104.59 × 9.5 mm; Interface: LVDS; Brightness: 500 cd/m²; Driver IC: SC7283; Operating Temperature: -30 to 85 ℃; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z070WV29 connect to a host system?

Z070WV29 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z070WV29?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WV29 so the exact assembly can be reviewed.

Where can I find the drawing for Z070WV29?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z070WV29 sample?

Include the model Z070WV29, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z070WV29 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z070WV29 quote or evaluation sample →

Discuss this display with our team

Z070WV29

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
