Model no.Z070WS15-CT
Z070WS15-CT 7-Inch 1024 × 600 LCD Display Module
Z070WS15-CT is a 7-inch lcd display module with 1024 × 600 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 100 × 5.07 mm
- Interface: LVDS
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
- Screen Size
- 7 inch
- Resolution
- 1024 × 600 pixels
- Display Mode
- Normally black,Transmissive
- Interface
- LVDS
Specification confirmation. Confirm storage temperature against the latest approved specification before design-in.
Z070WS15-CT product introduction
Z070WS15-CT is a 7-inch lcd display module with 1024 × 600 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The custom lcd display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 164.9 × 100 × 5.07 mm. Brightness: 450 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z070WS15-CT with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z070WS15-CT should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z070WS15-CT attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1024 × 600 pixels
- Module Dimensions: 164.9 × 100 × 5.07 mm
- Interface: LVDS
- Brightness: 450 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 7 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1024 × 600 pixels |
| Module Dimensions | 164.9 × 100 × 5.07 mm |
| Active Area | 154.21 × 85.92 mm |
| Interface | LVDS |
| Display Technology | TFT, Normally Black, Transmissive |
| Contrast Ratio | 700:1 |
| Working Temperatures | -20℃ To +70℃ |
| Model Size (W*H*T)mm | 164.9*100*5.07mm |
| Display Mode | Normally Black,Transmissive |
| Viewing | IPS |
| Brightness | 450 cd/m² |
| Pin Count | 40 pin |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 7 inch |
Confirm storage temperature against the latest approved module specification before design-in.
Interface & pin definition
Use the Z070WS15-CT electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Pin Count | 40 pin |

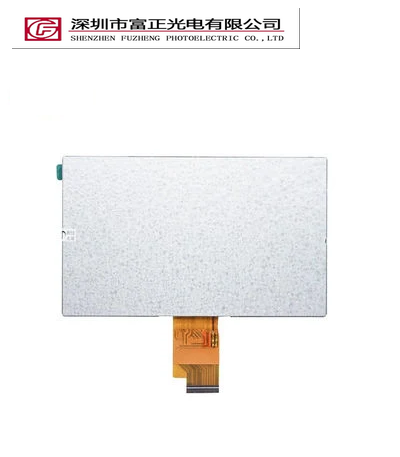

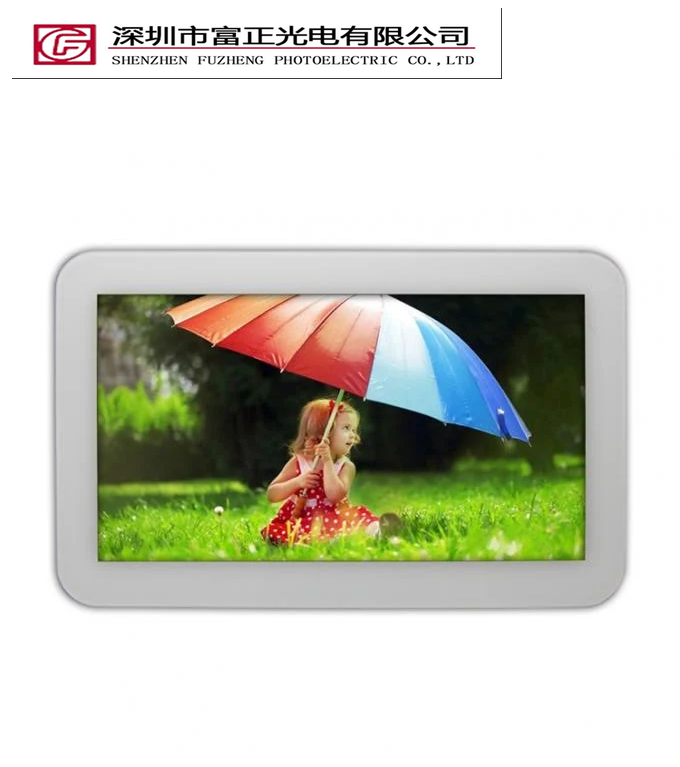

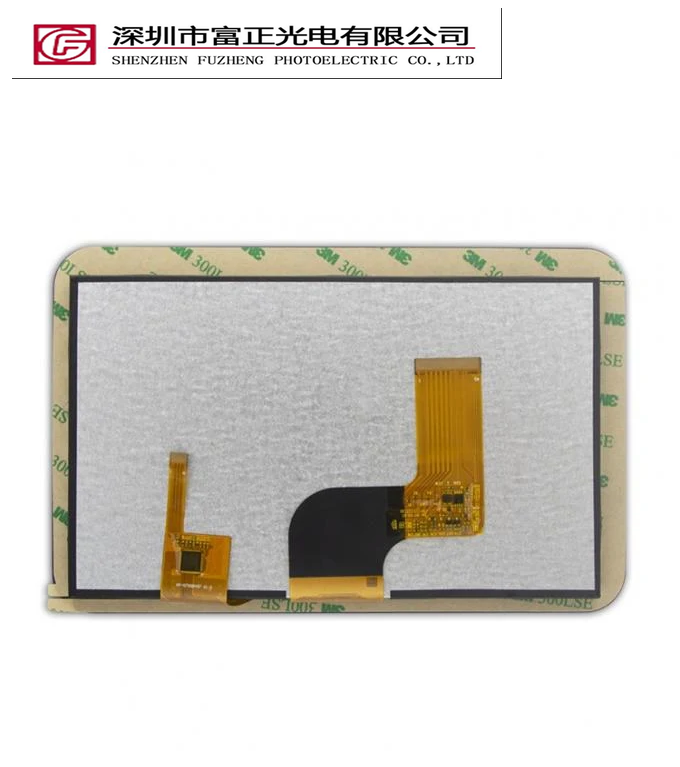

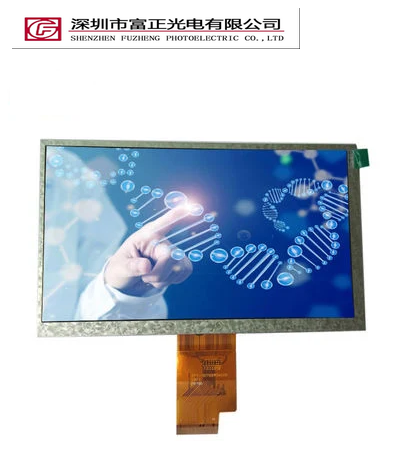

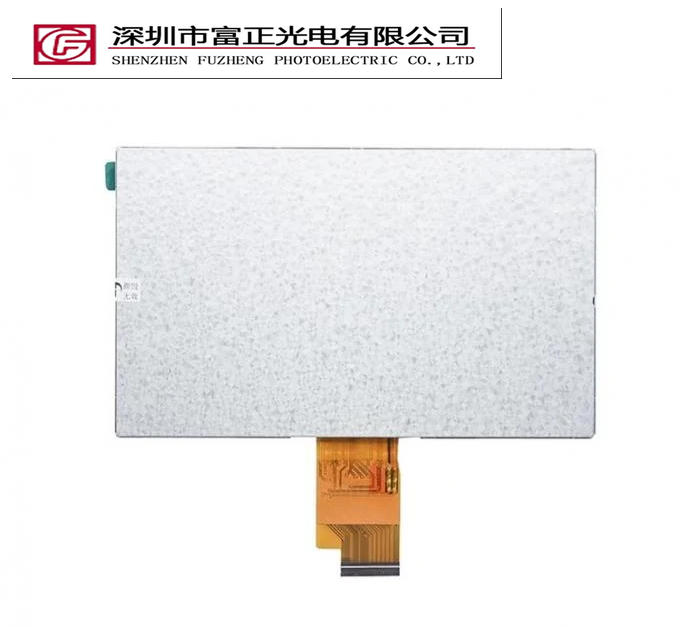

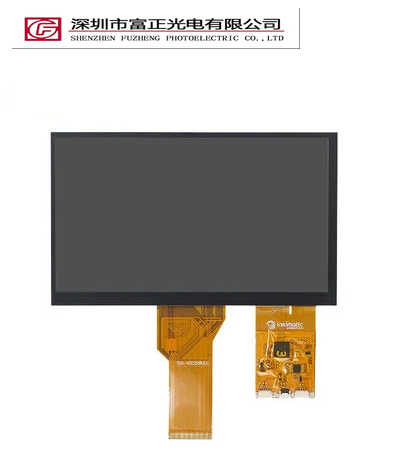

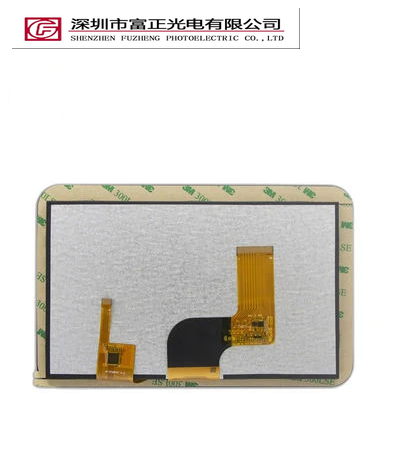

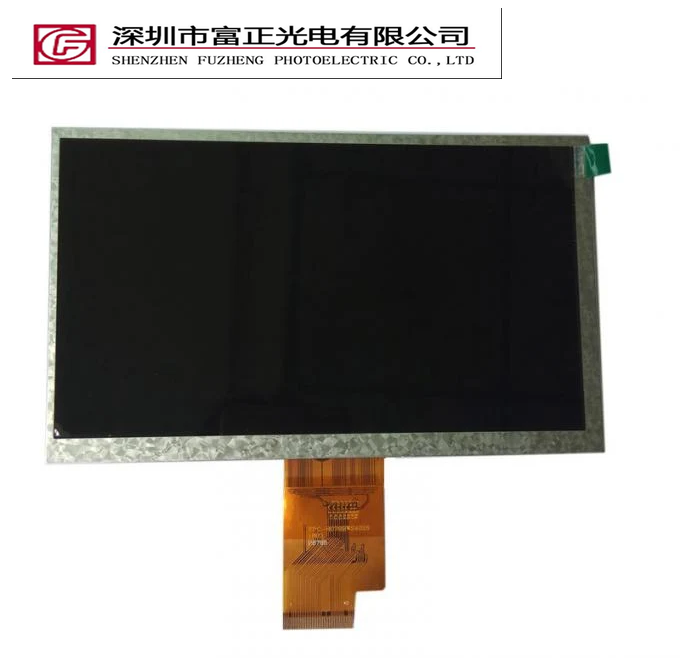

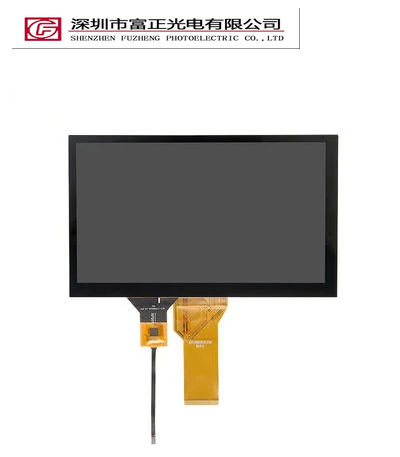

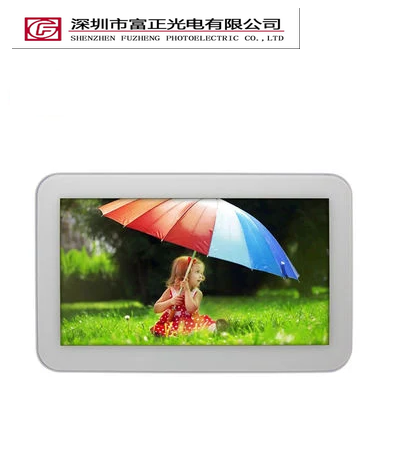

Product photographs

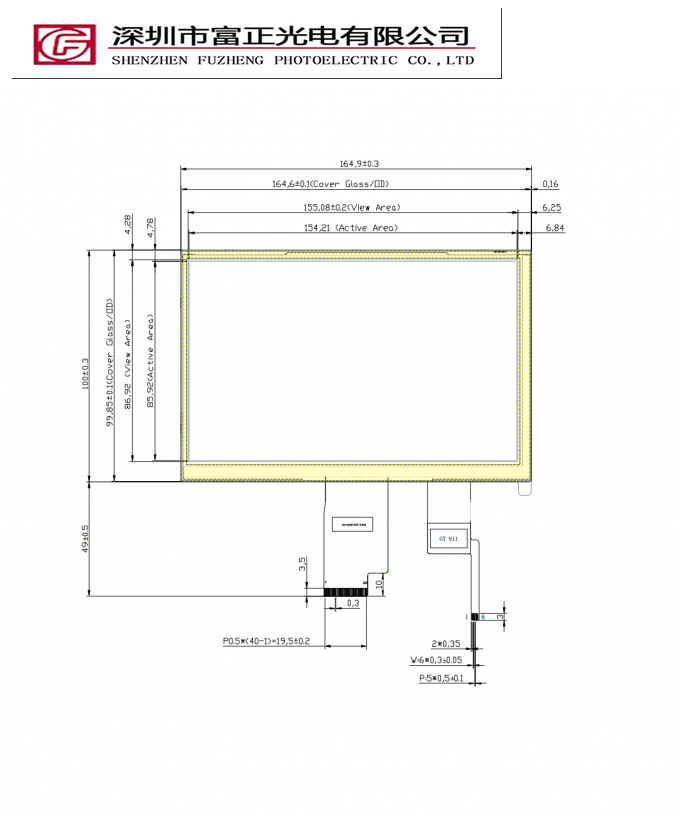

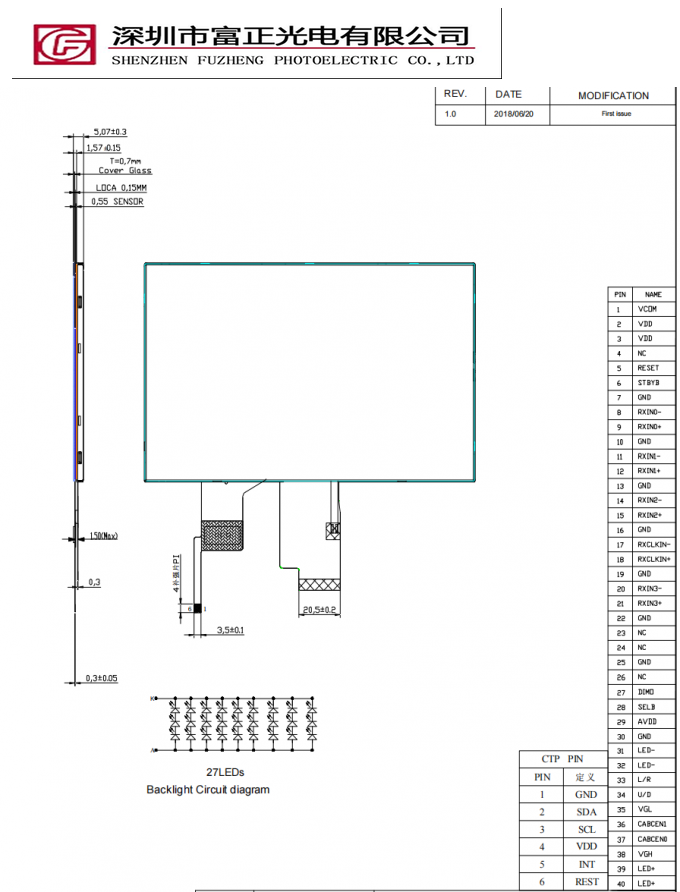

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z070WS15-CT against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z070WS15-CT can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 7-inch display format with your available viewing area, then check 1024 × 600 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070WS15-CT configuration.
Z070WS15-CT frequently asked questions
What specifications are listed for Z070WS15-CT?
Resolution: 1024 × 600 pixels; Module Dimensions: 164.9 × 100 × 5.07 mm; Interface: LVDS; Brightness: 450 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z070WS15-CT connect to a host system?
Z070WS15-CT lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z070WS15-CT?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070WS15-CT so the exact assembly can be reviewed.
Where can I find the drawing for Z070WS15-CT?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z070WS15-CT sample?
Include the model Z070WS15-CT, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z070WS15-CT reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
