Bar Type TFT Displays Reference 12145

17.2-Inch Stretched Bar Type IPS TFT-LCD Display

This source-tracked comparison record covers a 17.2" IPS-TFT module. Its imagery and listed values support initial engineering review; availability, model ownership and the final specification require Fuzheng confirmation before quotation or sample evaluation.

IPS-TFT
Stretched Bar
LVDS
1920(RGB) x 714

Screen Size: 17.2"
Resolution: 1920(RGB) x 714
Technology: IPS-TFT
Shape: Stretched Bar
Interface: LVDS
Brightness: 500cd/m2

Comparison candidate: availability, model ownership and all specifications require confirmation before quotation.

Exact-record review: Reference media and values remain attached to a clearly marked confirmation candidate.
Integration context: Format, interface, touch, optical and mechanical review points are organized around the published data.
Product-specific inquiry: Quotation, sample and WhatsApp actions carry this display name into the engineering discussion.

Product details

Review the module around published evidence.

The current record identifies 1920(RGB) x 714 resolution, LVDS interface, 500cd/m2 brightness. Use these values to narrow the shortlist, then confirm the electrical, optical and mechanical requirements against the host product.

Stretched and bar-format TFT displays for shelf, control-panel and narrow-format interface layouts represented in the current catalog. Final suitability depends on the approved drawing, sample evaluation and the host system requirements.

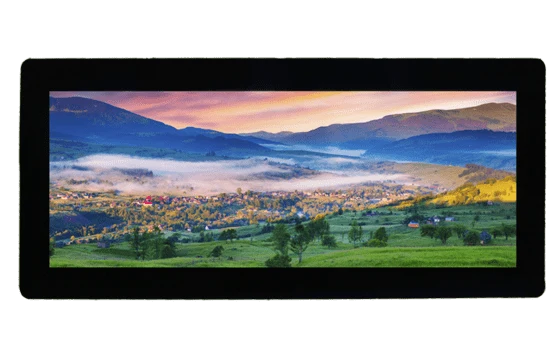

Product views

Inspect the module from the available source imagery.

Images stay contained and uncropped so the display, flex cable, connector and visible assembly details remain available for review.

Published product data

Specifications in one consistent format.

Reference values are displayed for comparison and require confirmation before quotation.

Published specifications for 17.2-Inch Stretched Bar Type IPS TFT-LCD Display
Specification	Published value	Review status
Screen Size	17.2"	Confirm before quotation
Resolution	1920(RGB) x 714	Confirm before quotation
Technology	IPS-TFT	Confirm before quotation
Shape	Stretched Bar	Confirm before quotation
Interface	LVDS	Confirm before quotation
Brightness	500cd/m2	Confirm before quotation
Viewing Angle	89/89/89/89	Confirm before quotation

Design-in review

Move from a catalog match to a controlled sample evaluation.

Format and image area

Published screen size: 17.2". Resolution: 1920(RGB) x 714. Shape: Stretched Bar.

Electrical connection

Published interface: LVDS.

Optical and front assembly

Brightness: 500cd/m2. Viewing angle: 89/89/89/89.

Configuration discussion

Define the requirements that the catalog record cannot decide alone.

Use the published values as a starting point, then document the host electronics, enclosure, user interface and operating environment before requesting a sample.

Send product requirements

Confirm availability and the final electrical, optical and mechanical specification before design-in.
Review interface, connector and FPC alignment against the host electronics.
Discuss touch panel and cover lens requirements where the product design needs a front assembly.
Confirm outline, active area, mounting constraints and environmental requirements before sample approval.

Product FAQ

Planning the next engineering step.

Answers stay within the published record and the information needed for a useful RFQ.

Which product details should be confirmed before design-in?

Confirm availability, product ownership and every electrical, optical and mechanical value with Fuzheng before quotation, schematic release or sample evaluation.

What should I include in an inquiry for this display?

Include the product name or model, target size and resolution, host interface, touch and cover-lens requirements, brightness and environment, quantity and current project stage.

Can I request a sample for evaluation?

Use the sample request action and share the intended electrical and mechanical integration requirements so the evaluation scope can be discussed around this exact record.

Can interface, touch or mechanical requirements be discussed?

Yes. Send the host interface, connector or FPC constraints, touch and cover-lens needs, outline limits and environmental targets for an engineering review. No unpublished capability is assumed on this page.
