Model no.ESP32-8048S070R

ESP32-8048S070R 7-Inch 800 × 480 ESP32 Display Module

ESP32-8048S070R is a 7-inch esp32 display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

Resistance Touch
Resolution: 800 × 480 pixels
Driver IC: EK9716
Module Dimensions: 181.0 × 108.0() mm
Touch: Resistance Touch
Brightness: 300 cd/m²
Operating Temperature: -20 ℃ to 70 ℃
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 800 × 480 pixels
Touch: Resistance Touch

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

ESP32-8048S070R product introduction

ESP32-8048S070R is a 7-inch esp32 display module with 800 × 480 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The esp32 display modules format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Driver IC: EK9716. Module Dimensions: 181.0 × 108.0() mm. Touch: Resistance Touch. Brightness: 300 cd/m². Operating Temperature: -20 ℃ to 70 ℃. Use these published characteristics to compare ESP32-8048S070R with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for ESP32-8048S070R. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following ESP32-8048S070R attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 800 × 480 pixels
Driver IC: EK9716
Module Dimensions: 181.0 × 108.0() mm
Touch: Resistance Touch
Brightness: 300 cd/m²
Operating Temperature: -20 ℃ to 70 ℃
Screen Size: 7 inch

Technical specifications

ESP32-8048S070R technical parameters
Parameter	Value
Resolution	800 × 480 pixels
Display Color	Yellow
Driver IC	EK9716
Active Area	153.84 × 85.63() mm
Module Dimensions	181.0 × 108.0() mm
Touch	Resistance Touch
Brightness	300 cd/m²
Operating Temperature	-20 ℃ to 70 ℃
Storage Temperature	-30 ℃ to 80 ℃
Screen Size	7 inch

Interface & pin definition

Use the ESP32-8048S070R electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

ESP32-8048S070R technical parameters
Parameter	Value
Driver IC	EK9716
Touch	Resistance Touch

Product photographs

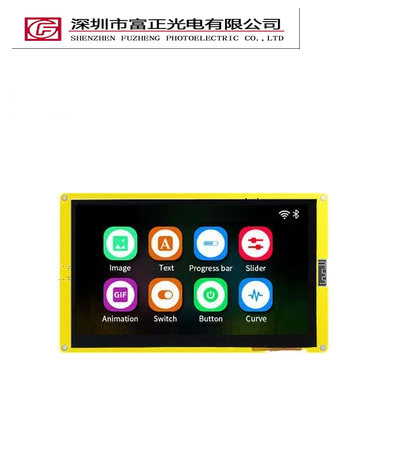

ESP32-8048S070R product view 1

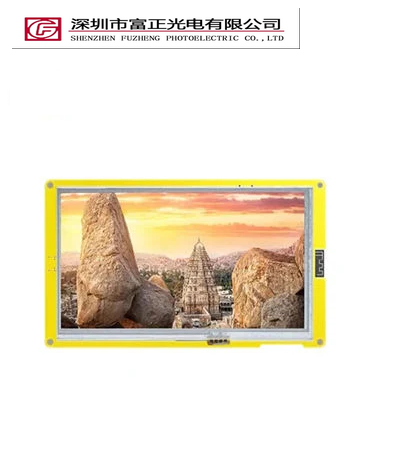

ESP32-8048S070R product view 2

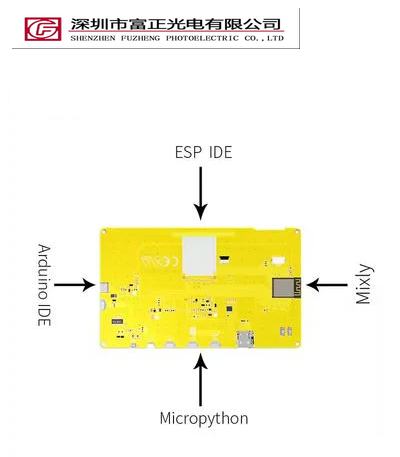

ESP32-8048S070R product view 3
