Model no.ZHD39001C30-V1
ZHD39001C30-V1 3.9-Inch 480 × 128 Bar Type TFT-LCD Display — Ref 54274825
ZHD39001C30-V1 is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Resolution: 480 × 128 pixels
- Module Dimensions: 103.20 × 34.85 × 2.4 mm
- Interface: RGB
- Operating Temperature: -20 to 70 °C
- Driver IC: NV3047E
- Brightness: 900 cd/m²
- Screen Size: 3.9 inch
- Screen Size
- 3.9 inch
- Resolution
- 480 × 128 pixels
- Interface
- RGB
- Viewing Angle
- ALL/IPS
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
ZHD39001C30-V1 product introduction
ZHD39001C30-V1 is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 103.20 × 34.85 × 2.4 mm. Operating Temperature: -20 to 70 °C. Driver IC: NV3047E. Brightness: 900 cd/m². Use these published characteristics to compare ZHD39001C30-V1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on ZHD39001C30-V1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following ZHD39001C30-V1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 128 pixels
- Module Dimensions: 103.20 × 34.85 × 2.4 mm
- Interface: RGB
- Operating Temperature: -20 to 70 °C
- Driver IC: NV3047E
- Brightness: 900 cd/m²
- Screen Size: 3.9 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 128 pixels |
| Module Dimensions | 103.20 × 34.85 × 2.4 mm |
| Active Area | 95.04 × 25.34 mm |
| Interface | RGB |
| Viewing Direction | ALL/IPS |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Driver IC | NV3047E |
| Model Size (W*H*T)mm | 103.20 x34.85 x2.4mm |
| Viewing | IPS |
| Brightness | 900 cd/m² |
| Pin Count | 40 pin |
| Contrast Ratio | 1200:1 |
| Screen Size | 3.9 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the ZHD39001C30-V1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |
| Driver IC | NV3047E |
| Pin Count | 40 pin |

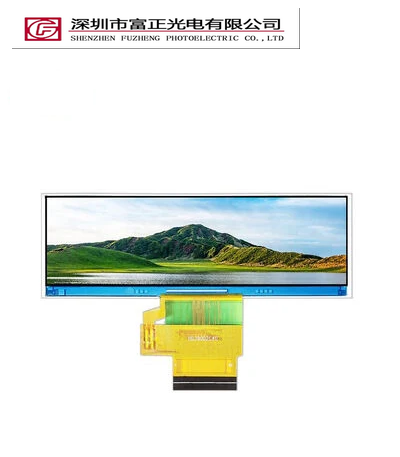

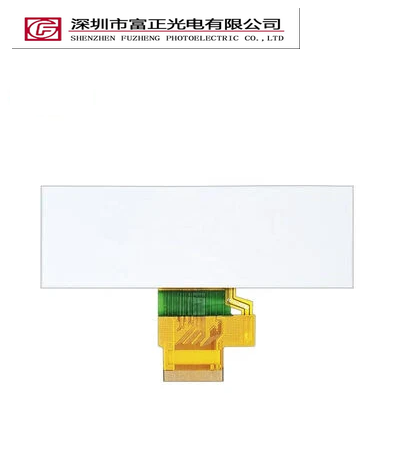

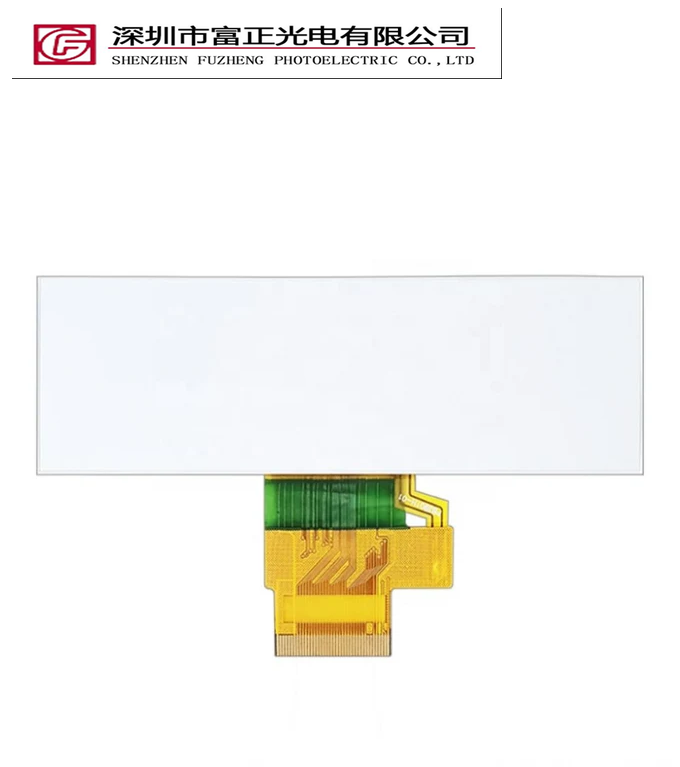

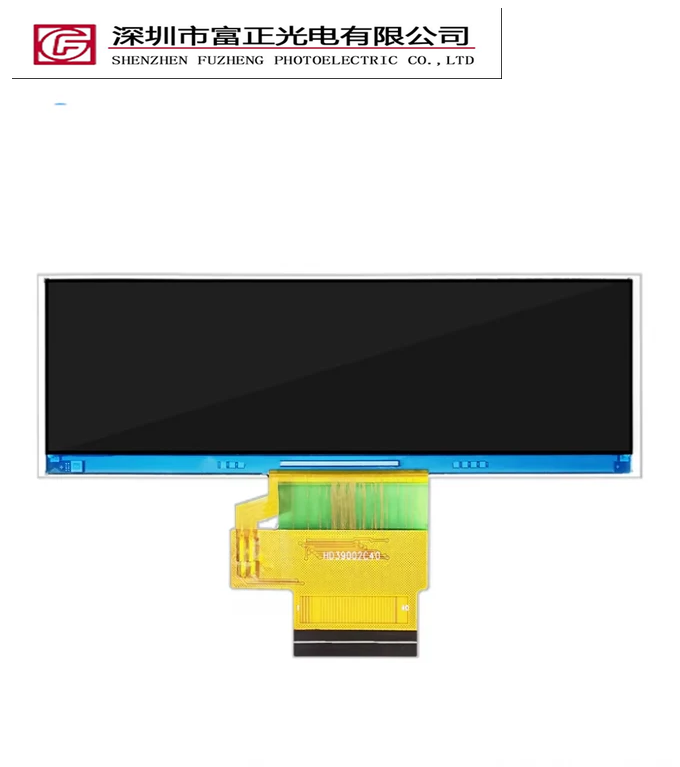

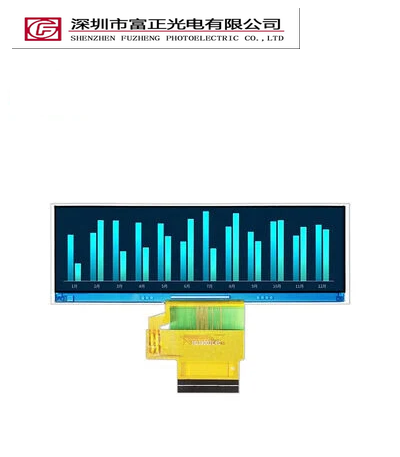

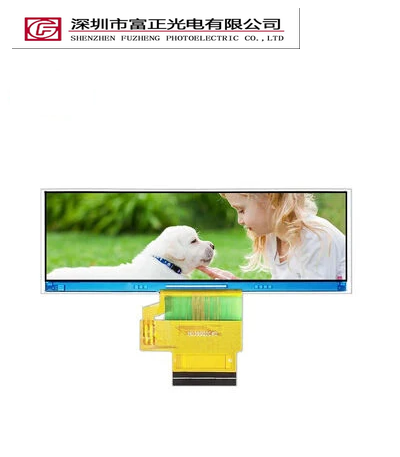

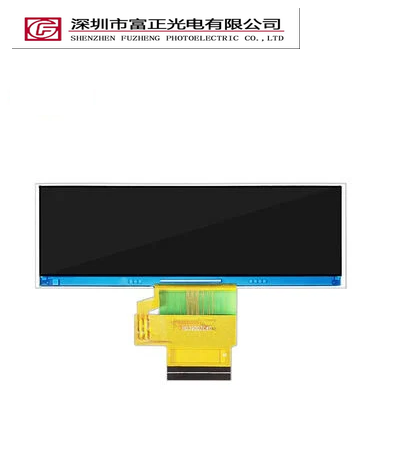

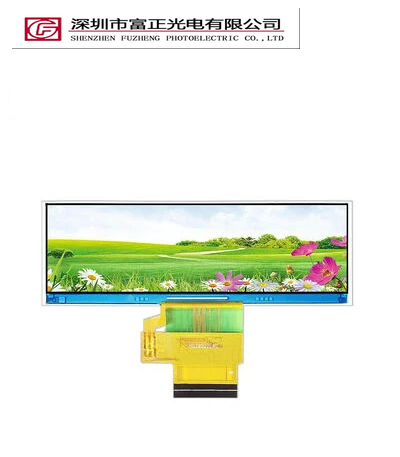

Product photographs

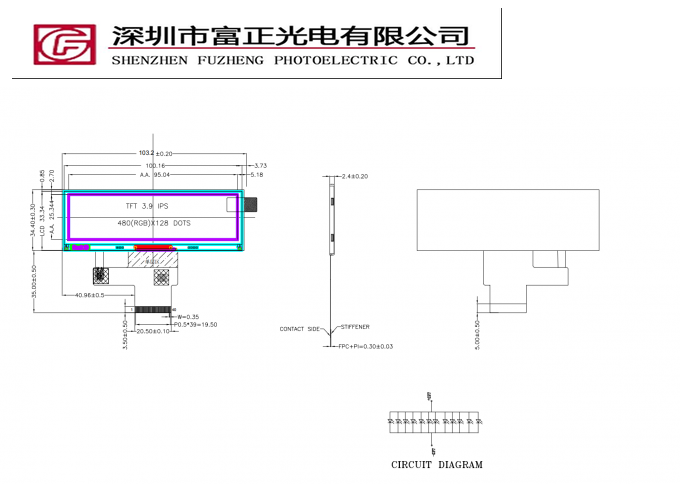

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of ZHD39001C30-V1 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
ZHD39001C30-V1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.9-inch display format with your available viewing area, then check 480 × 128 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected ZHD39001C30-V1 configuration.
ZHD39001C30-V1 frequently asked questions
What specifications are listed for ZHD39001C30-V1?
Resolution: 480 × 128 pixels; Module Dimensions: 103.20 × 34.85 × 2.4 mm; Interface: RGB; Operating Temperature: -20 to 70 °C; Driver IC: NV3047E; Brightness: 900 cd/m²; Screen Size: 3.9 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should ZHD39001C30-V1 connect to a host system?
ZHD39001C30-V1 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for ZHD39001C30-V1?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for ZHD39001C30-V1 so the exact assembly can be reviewed.
Where can I find the drawing for ZHD39001C30-V1?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a ZHD39001C30-V1 sample?
Include the model ZHD39001C30-V1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the ZHD39001C30-V1 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
