Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z800-5.4BL0215-24A
Z800-5.4BL0215-24A 8-Inch 1600 × 480 Bar Type TFT-LCD Display — Ref 51843137
Z800-5.4BL0215-24A is a 8-inch bar type tft-lcd display with 1600 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample.
- LVDS
- Resolution: 1600 × 480 pixels
- Module Dimensions: 204.5 × 70 × 1.0 mm
- Interface: LVDS
- Brightness: 500 cd/m²
- Driver IC: HX8249+HX8678
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
- Screen Size
- 8 inch
- Resolution
- 1600 × 480 pixels
- Interface
- LVDS
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
Z800-5.4BL0215-24A product introduction
Z800-5.4BL0215-24A is a 8-inch bar type tft-lcd display with 1600 × 480 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 204.5 × 70 × 1.0 mm. Brightness: 500 cd/m². Driver IC: HX8249+HX8678. Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z800-5.4BL0215-24A with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The LVDS connection on Z800-5.4BL0215-24A should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z800-5.4BL0215-24A attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 1600 × 480 pixels
- Module Dimensions: 204.5 × 70 × 1.0 mm
- Interface: LVDS
- Brightness: 500 cd/m²
- Driver IC: HX8249+HX8678
- Operating Temperature: -20 to 70 °C
- Screen Size: 8 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 1600 × 480 pixels |
| Module Dimensions | 204.5 × 70 × 1.0 mm |
| Interface | LVDS |
| Brightness | 500 cd/m² |
| Working Temperatures | -20 To 70 Degree |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T) | 204.5(H) * 70(V) * 1.0(D) mm |
| Active Area | 194.4 × 58.32 mm |
| Driver IC | HX8249+HX8678 |
| Pin Count | 40 pin |
| Contrast Ratio | 900:1 |
| Operating Temperature | -20 to 70 °C |
| Screen Size | 8 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z800-5.4BL0215-24A electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | LVDS |
| Driver IC | HX8249+HX8678 |
| Pin Count | 40 pin |

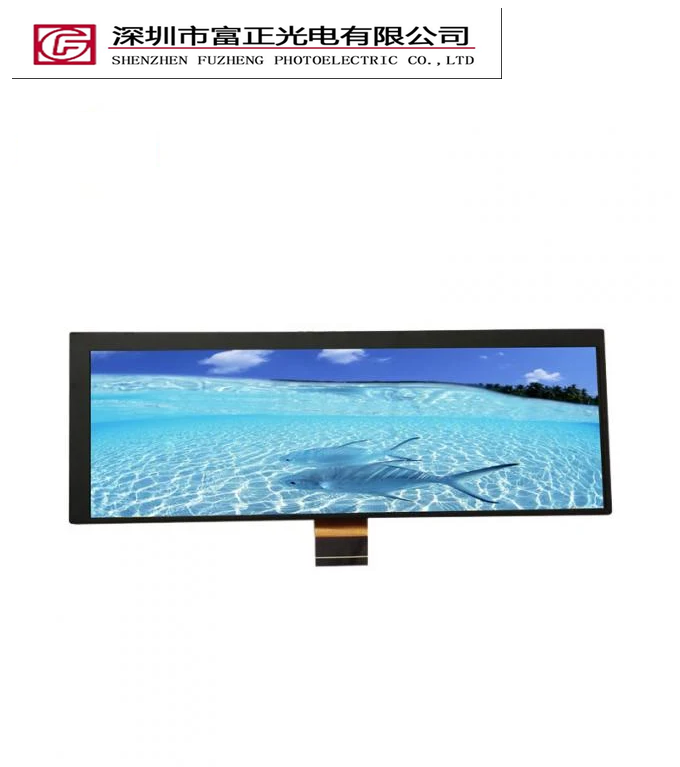

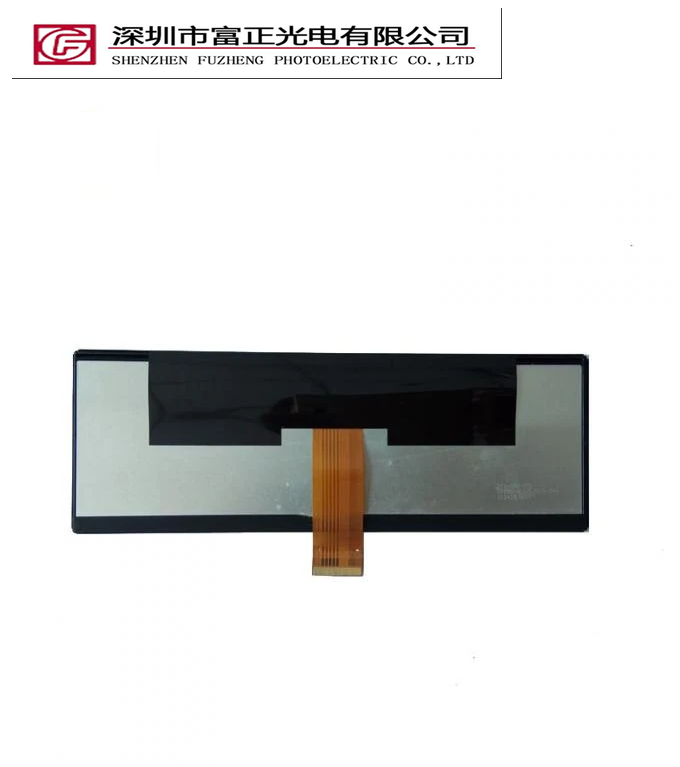

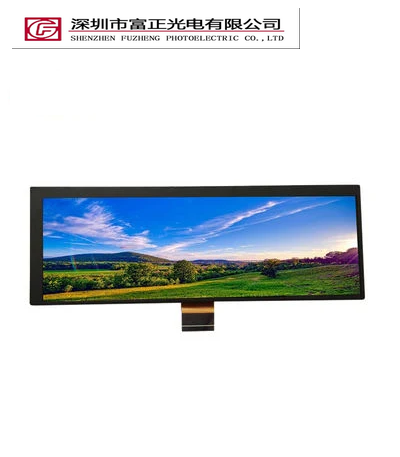

Product photographs

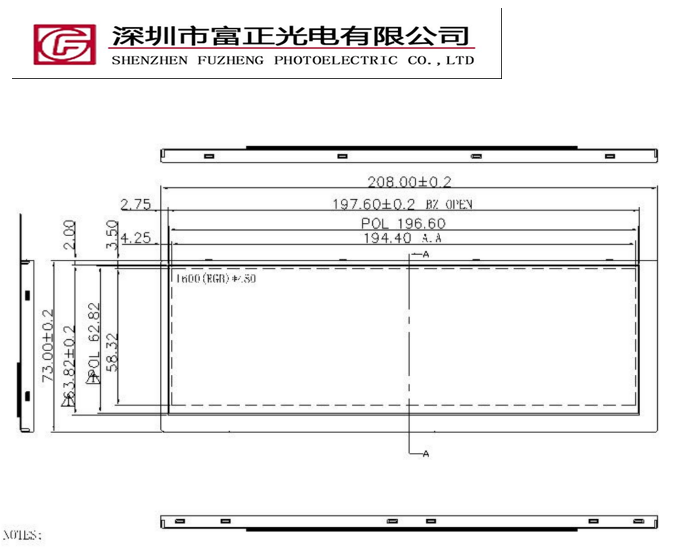

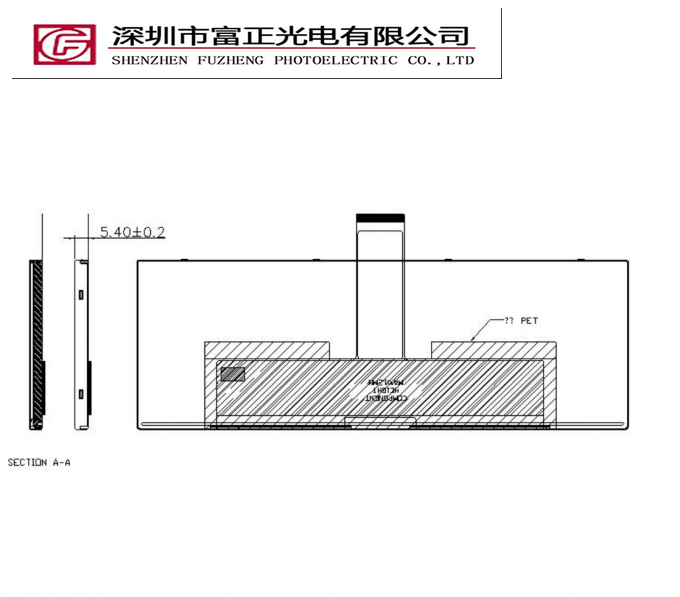

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z800-5.4BL0215-24A against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z800-5.4BL0215-24A can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 8-inch display format with your available viewing area, then check 1600 × 480 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z800-5.4BL0215-24A configuration.
Z800-5.4BL0215-24A frequently asked questions
What specifications are listed for Z800-5.4BL0215-24A?
Resolution: 1600 × 480 pixels; Module Dimensions: 204.5 × 70 × 1.0 mm; Interface: LVDS; Brightness: 500 cd/m²; Driver IC: HX8249+HX8678; Operating Temperature: -20 to 70 °C; Screen Size: 8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z800-5.4BL0215-24A connect to a host system?
Z800-5.4BL0215-24A lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z800-5.4BL0215-24A?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z800-5.4BL0215-24A so the exact assembly can be reviewed.
Where can I find the drawing for Z800-5.4BL0215-24A?
The drawing section contains 2 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z800-5.4BL0215-24A sample?
Include the model Z800-5.4BL0215-24A, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z800-5.4BL0215-24A reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
