Model no.Z088WU03 V1

Z088WU03 V1 8.8-Inch 1280 × 320 Bar Type TFT-LCD Display — Ref 53349166

LVDS
Resolution: 1280 × 320 pixels
Module Dimensions: 231.8 × 76.2 × 6.5 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8.8 inch

Screen Size: 8.8 inch
Resolution: 1280 × 320 pixels
Interface: LVDS

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z088WU03 V1 product introduction

Z088WU03 V1 is a 8.8-inch bar type tft-lcd display with 1280 × 320 resolution and a LVDS interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 231.8 × 76.2 × 6.5 mm. Brightness: 1000 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z088WU03 V1 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The LVDS connection on Z088WU03 V1 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z088WU03 V1 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 1280 × 320 pixels
Module Dimensions: 231.8 × 76.2 × 6.5 mm
Interface: LVDS
Brightness: 1000 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 8.8 inch

Technical specifications

Z088WU03 V1 technical parameters
Parameter	Value
Resolution	1280 × 320 pixels
Module Dimensions	231.8 × 76.2 × 6.5 mm
Interface	LVDS
Brightness	1000 cd/m²
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Model Size (WHT)	231.876.26.5mm
Active Area	216.96 × 54.24 mm
Pin Count	30 pin
Contrast Ratio	800:1
Operating Temperature	-20 to 70 °C
Screen Size	8.8 inch

Confirm display mode against the latest approved module specification before design-in.

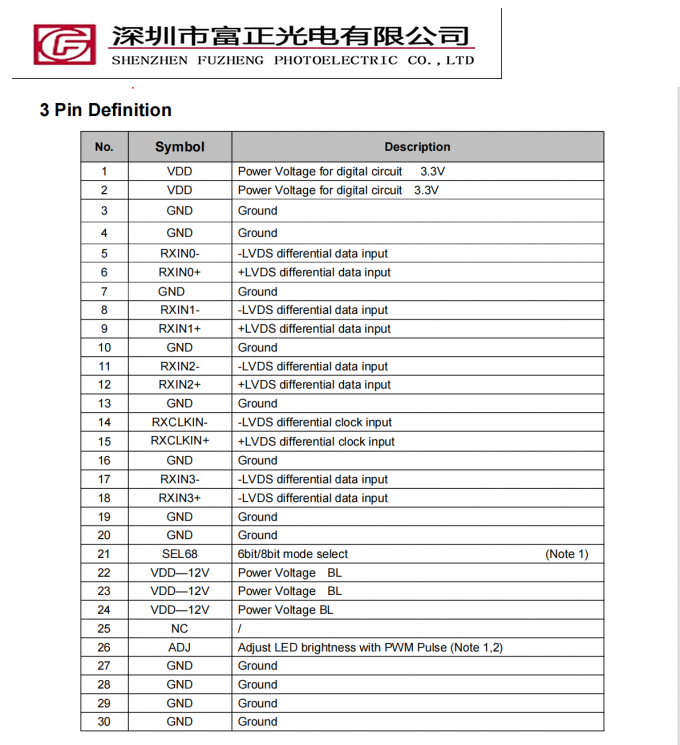

Interface & pin definition

Use the Z088WU03 V1 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z088WU03 V1 technical parameters
Parameter	Value
Interface	LVDS
Pin Count	30 pin

Product photographs

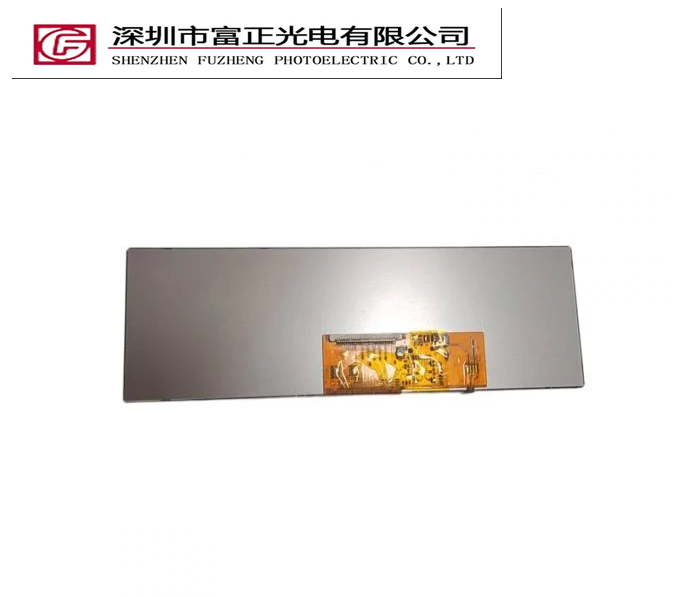

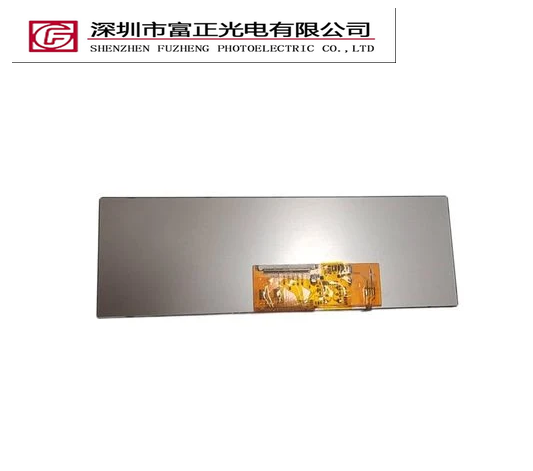

Z088WU03 V1 product view 1

Z088WU03 V1 product view 2

Mechanical drawings & documents

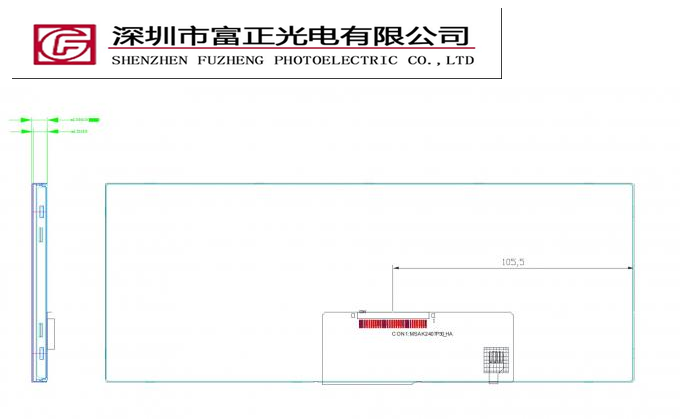

Mechanical reference 1 — open full size to inspect dimensions.

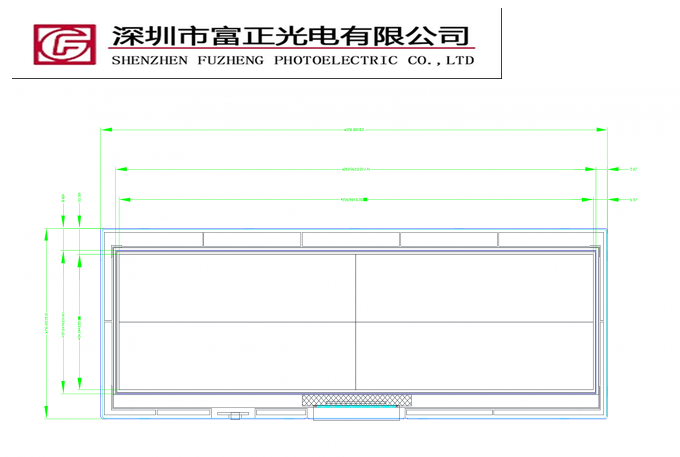

Mechanical reference 2 — open full size to inspect dimensions.

Mechanical reference 3 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z088WU03 V1 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z088WU03 V1 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 8.8-inch display format with your available viewing area, then check 1280 × 320 pixel resolution, LVDS host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z088WU03 V1 configuration.

Z088WU03 V1 frequently asked questions

What specifications are listed for Z088WU03 V1?

Resolution: 1280 × 320 pixels; Module Dimensions: 231.8 × 76.2 × 6.5 mm; Interface: LVDS; Brightness: 1000 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 8.8 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z088WU03 V1 connect to a host system?

Z088WU03 V1 lists a LVDS interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z088WU03 V1?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z088WU03 V1 so the exact assembly can be reviewed.

Where can I find the drawing for Z088WU03 V1?

The drawing section contains 3 model-associated mechanical reference images. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z088WU03 V1 sample?

Include the model Z088WU03 V1, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
