Model no.Z070FH01

Z070FH01 7-Inch 280 × 1424 Bar Type TFT-LCD Display — Ref 51813887

MIPI
Resolution: 280 × 1424 pixels
Module Dimensions: 38.20 × 181.47 × 3.5 mm
Interface: MIPI
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 7 inch

Screen Size: 7 inch
Resolution: 280 × 1424 pixels
Interface: MIPI

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z070FH01 product introduction

Z070FH01 is a 7-inch bar type tft-lcd display with 280 × 1424 resolution and a MIPI interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 38.20 × 181.47 × 3.5 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z070FH01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The MIPI connection on Z070FH01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z070FH01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 280 × 1424 pixels
Module Dimensions: 38.20 × 181.47 × 3.5 mm
Interface: MIPI
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 7 inch

Technical specifications

Z070FH01 technical parameters
Parameter	Value
Resolution	280 × 1424 pixels
Module Dimensions	38.20 × 181.47 × 3.5 mm
Interface	MIPI
Working Temperatures	-20 To 70 Degree
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	38.20x181.47x3.5 mm
Active Area	33.6 × 170.88 mm
Viewing	IPS
Brightness	300 cd/m²
Pin Count	30 pin
Contrast Ratio	1000:1
Operating Temperature	-20 to 70 °C
Screen Size	7 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z070FH01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z070FH01 technical parameters
Parameter	Value
Interface	MIPI
Pin Count	30 pin

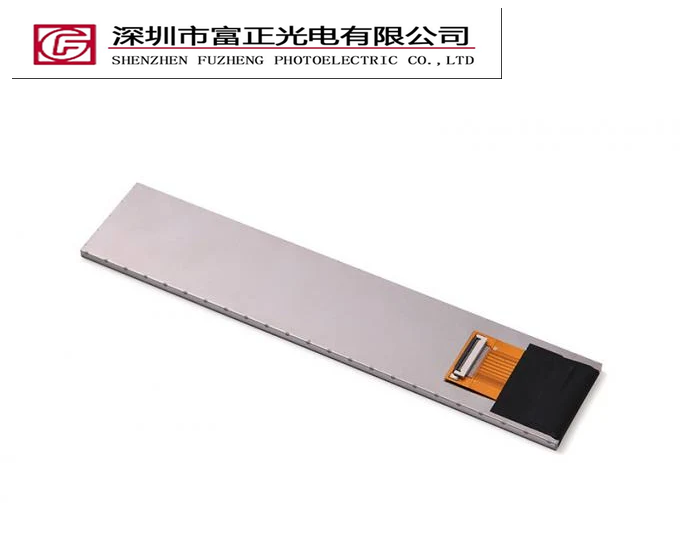

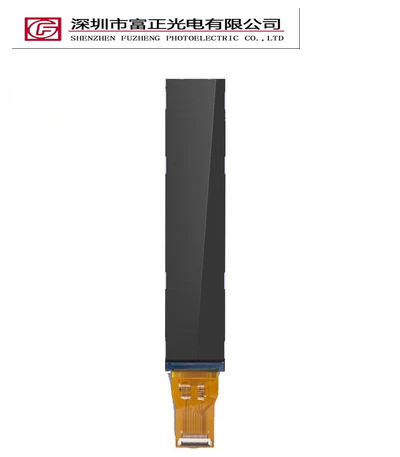

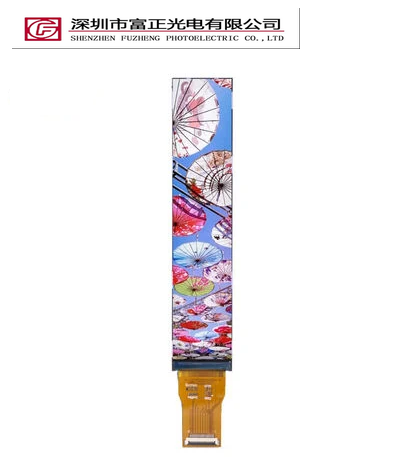

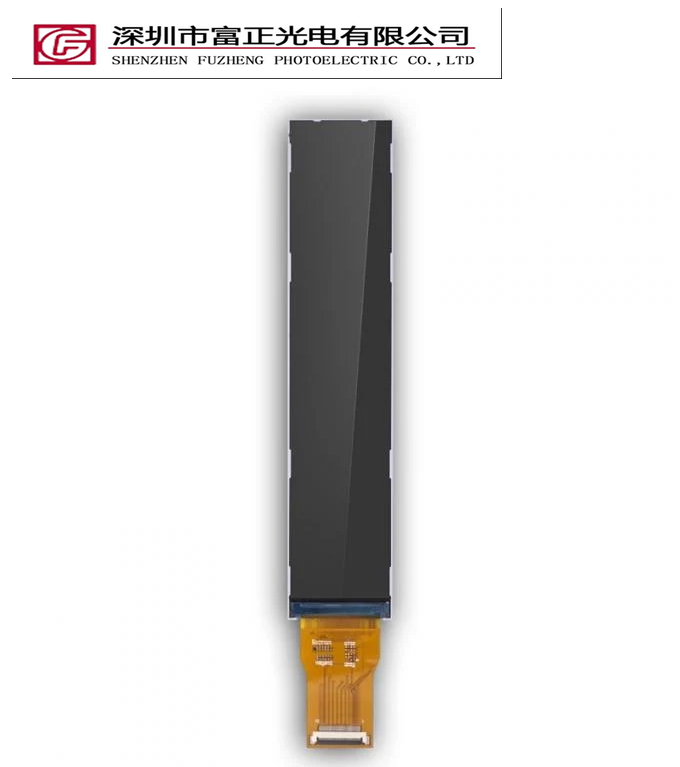

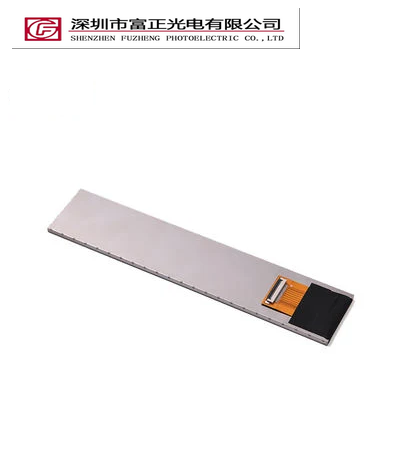

Product photographs

Z070FH01 product view 1

Z070FH01 product view 2

Z070FH01 product view 3

Z070FH01 product view 4

Z070FH01 product view 5

Mechanical drawings & documents

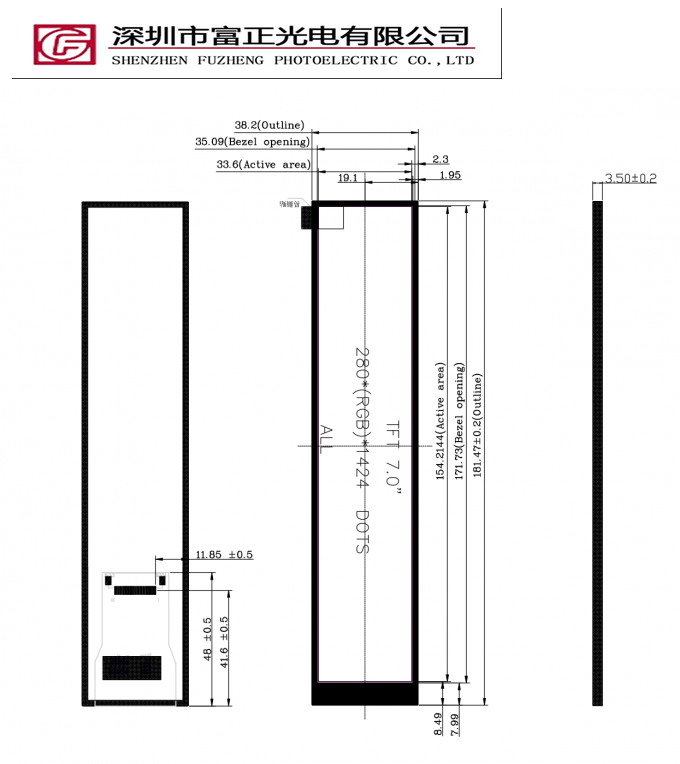

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z070FH01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z070FH01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 7-inch display format with your available viewing area, then check 280 × 1424 pixel resolution, MIPI host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z070FH01 configuration.

Z070FH01 frequently asked questions

What specifications are listed for Z070FH01?

Resolution: 280 × 1424 pixels; Module Dimensions: 38.20 × 181.47 × 3.5 mm; Interface: MIPI; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 7 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z070FH01 connect to a host system?

Z070FH01 lists a MIPI interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z070FH01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z070FH01 so the exact assembly can be reviewed.

Where can I find the drawing for Z070FH01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z070FH01 sample?

Include the model Z070FH01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z070FH01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z070FH01 quote or evaluation sample →
