Model no.Z046HD02

Z046HD02 4.6-Inch 320 × 960 Bar Type TFT-LCD Display — Ref 53174994

Z046HD02 is a 4.6-inch bar type tft-lcd display with 320 × 960 resolution. Review the module specifications, product images and integration requirements before requesting a sample.

PCAP Touch
Resolution: 320 × 960 pixels
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Touch: PCAP Touch
Driver IC: ST7701S
Screen Size: 4.6 inch

Screen Size: 4.6 inch
Resolution: 320 × 960 pixels
Touch: PCAP Touch

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm interface, display mode against the latest approved specification before design-in.

Z046HD02 product introduction

Z046HD02 is a 4.6-inch bar type tft-lcd display with 320 × 960 resolution. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Touch: PCAP Touch. Driver IC: ST7701S. Use these published characteristics to compare Z046HD02 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

Confirm the host connection and controller requirements for Z046HD02. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z046HD02 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 320 × 960 pixels
Brightness: 300 cd/m²
Operating Temperature: -20 to 70 °C
Touch: PCAP Touch
Driver IC: ST7701S
Screen Size: 4.6 inch

Technical specifications

Z046HD02 technical parameters
Parameter	Value
Resolution	320 × 960 pixels
Active Area	36.768 × 110.304 mm
Brightness	300 cd/m²
Operating Temperature	-20 to 70 °C
Touch	PCAP Touch
Driver IC	ST7701S
Contrast Ratio	1200:1
Model Size (WHT)mm	41.57118.82.5 mm
Viewing	IPS
Pin Count	40 pin
Storage Temperature	-30 to 80 °C
Screen Size	4.6 inch

Confirm interface, display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z046HD02 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z046HD02 technical parameters
Parameter	Value
Touch	PCAP Touch
Driver IC	ST7701S
Pin Count	40 pin

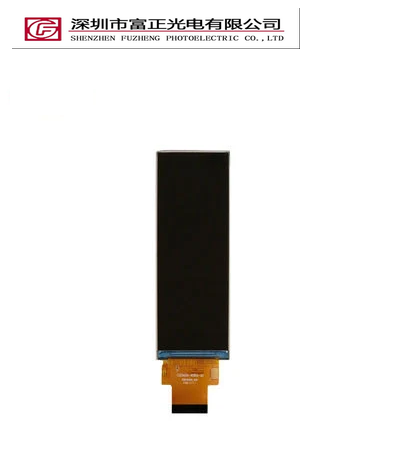

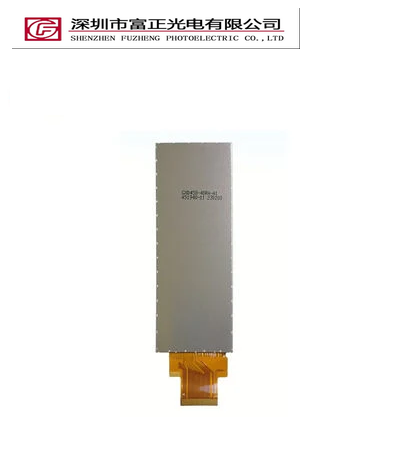

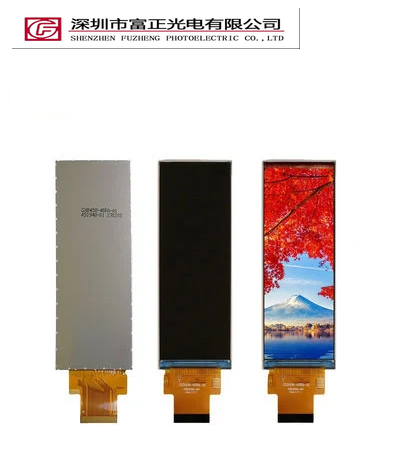

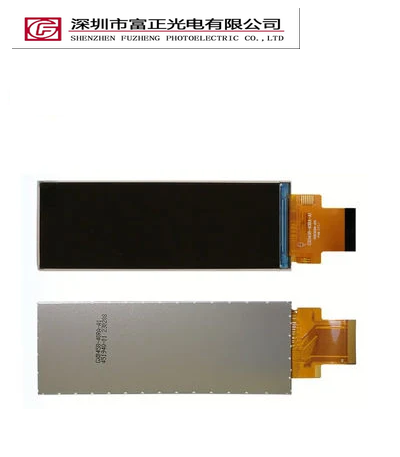

Product photographs

Z046HD02 product view 1

Z046HD02 product view 2

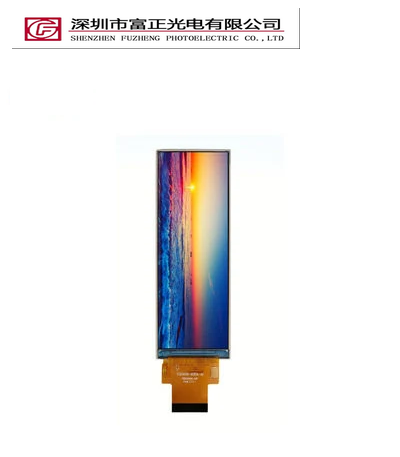

Z046HD02 product view 3

Z046HD02 product view 4

Z046HD02 product view 5

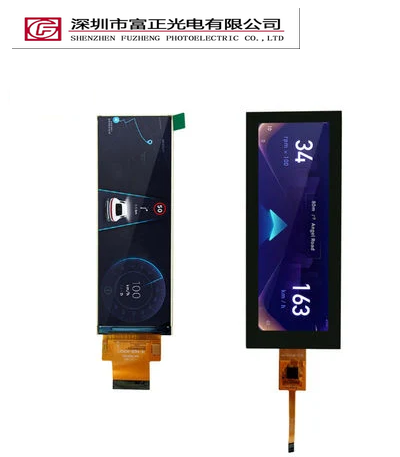

Z046HD02 product view 6

Z046HD02 product view 7

Z046HD02 product view 8

Z046HD02 product view 9

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z046HD02 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z046HD02 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 4.6-inch display format with your available viewing area, then check 320 × 960 pixel resolution, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z046HD02 configuration.

Z046HD02 frequently asked questions

What specifications are listed for Z046HD02?

Resolution: 320 × 960 pixels; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Touch: PCAP Touch; Driver IC: ST7701S; Screen Size: 4.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z046HD02 connect to a host system?

Request the exact interface documentation for this assembly. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z046HD02?

The listed touch configuration is PCAP Touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.

Where can I find the drawing for Z046HD02?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z046HD02 sample?

Include the model Z046HD02, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
