Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z046HD01

Z046HD01 4.6-Inch 320 × 960 Bar Type TFT-LCD Display — Ref 51397468

3SPI+18BIT RGB
Brightness: 300 cd/m²
Interface: 3SPI+18BIT RGB
Module Dimensions: 41.57 × 118.8 × 2.5 mm
Resolution: 320 × 960 pixels
Screen Size: 4.6 inch

Screen Size: 4.6 inch
Resolution: 320 × 960 pixels
Interface: 3SPI+18BIT RGB
Viewing Angle: IPS, All

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm storage temperature against the latest approved specification before design-in.

Z046HD01 product introduction

Z046HD01 is a 4.6-inch bar type tft-lcd display with 320 × 960 resolution and a 3SPI+18BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Brightness: 300 cd/m². Module Dimensions: 41.57 × 118.8 × 2.5 mm. Use these published characteristics to compare Z046HD01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The 3SPI+18BIT RGB connection on Z046HD01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z046HD01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Brightness: 300 cd/m²
Interface: 3SPI+18BIT RGB
Module Dimensions: 41.57 × 118.8 × 2.5 mm
Resolution: 320 × 960 pixels
Screen Size: 4.6 inch

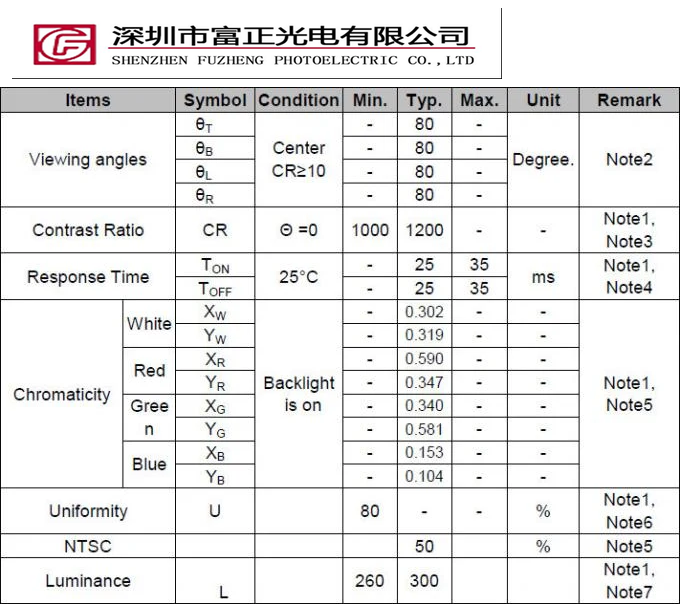

Technical specifications

Z046HD01 technical parameters
Parameter	Value
Brightness	300 cd/m²
Contrast Ratio	1200:1
Interface	3SPI+18BIT RGB
Module Dimensions	41.57 × 118.8 × 2.5 mm
Active Area	36.768 × 110.304 mm
Resolution	320 × 960 pixels
Viewing Direction	IPS, All
Operation temperature	-20 to 70°C
Screen Size	4.6 inch

Confirm storage temperature against the latest approved module specification before design-in.

Interface & pin definition

Use the Z046HD01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z046HD01 technical parameters
Parameter	Value
Interface	3SPI+18BIT RGB

Product photographs

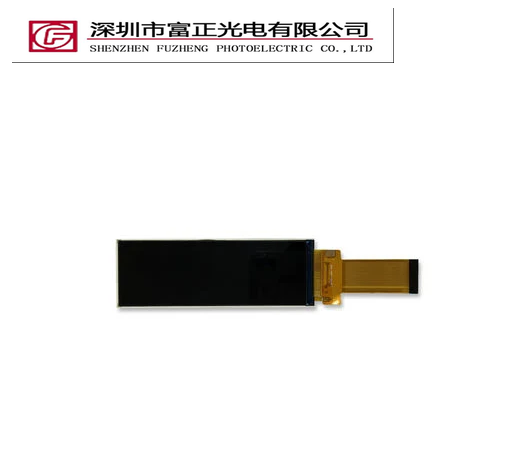

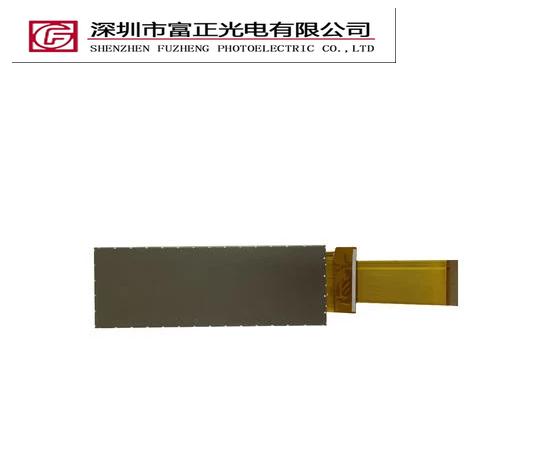

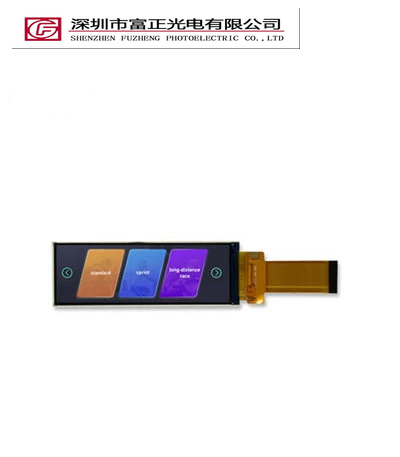

Z046HD01 product view 1

Z046HD01 product view 2

Z046HD01 product view 3

Z046HD01 product view 4

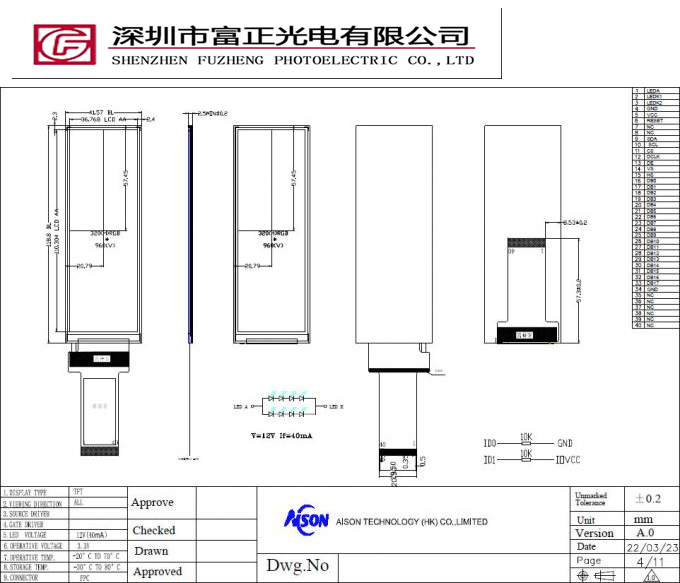

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z046HD01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z046HD01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 4.6-inch display format with your available viewing area, then check 320 × 960 pixel resolution, 3SPI+18BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z046HD01 configuration.

Z046HD01 frequently asked questions

What specifications are listed for Z046HD01?

Brightness: 300 cd/m²; Interface: 3SPI+18BIT RGB; Module Dimensions: 41.57 × 118.8 × 2.5 mm; Resolution: 320 × 960 pixels; Screen Size: 4.6 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z046HD01 connect to a host system?

Z046HD01 lists a 3SPI+18BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z046HD01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z046HD01 so the exact assembly can be reviewed.

Where can I find the drawing for Z046HD01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z046HD01 sample?

Include the model Z046HD01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z046HD01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
