Z039WQ03J 3.9-Inch 480 × 128 Bar Type TFT-LCD Display

RGB
Resolution: 480 × 128 pixels
Module Dimensions: 105.5 × 40.61 × 2.9 mm
Interface: RGB
Operating Temperature: -20 to 70 °C
Brightness: 1000 cd/m²
Screen Size: 3.9 inch

Screen Size: 3.9 inch
Resolution: 480 × 128 pixels
Interface: RGB
Viewing Angle: ALL/IPS

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z039WQ03J product introduction

Z039WQ03J is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 105.5 × 40.61 × 2.9 mm. Operating Temperature: -20 to 70 °C. Brightness: 1000 cd/m². Use these published characteristics to compare Z039WQ03J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB connection on Z039WQ03J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z039WQ03J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 480 × 128 pixels
Module Dimensions: 105.5 × 40.61 × 2.9 mm
Interface: RGB
Operating Temperature: -20 to 70 °C
Brightness: 1000 cd/m²
Screen Size: 3.9 inch

Technical specifications

Z039WQ03J technical parameters
Parameter	Value
Resolution	480 × 128 pixels
Module Dimensions	105.5 × 40.61 × 2.9 mm
Active Area	95.04 × 25.344 mm
Interface	RGB
Viewing Direction	ALL/IPS
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	105.540.612.9mm
Viewing	IPS
Brightness	1000 cd/m²
Pin Count	40 pin
Contrast Ratio	600:1
Screen Size	3.9 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z039WQ03J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z039WQ03J technical parameters
Parameter	Value
Interface	RGB
Pin Count	40 pin

Product photographs

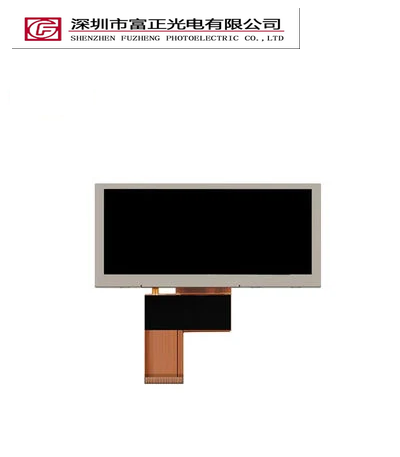

Z039WQ03J product view 1

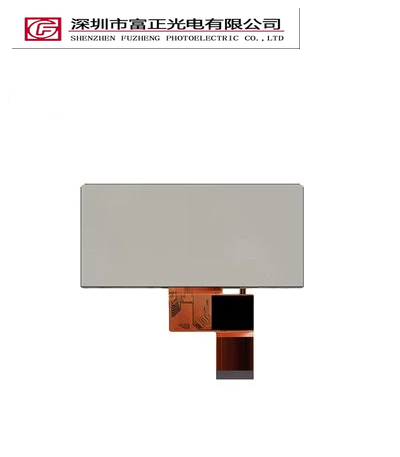

Z039WQ03J product view 2

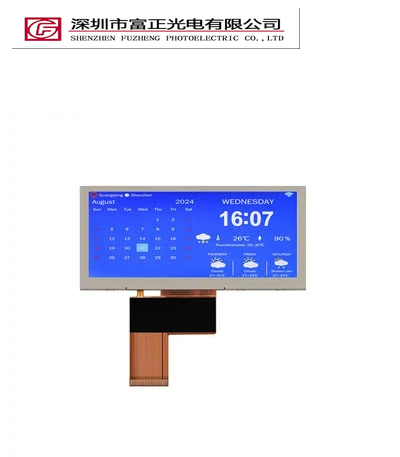

Z039WQ03J product view 3
