Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.
Model no.Z039WQ02J
Z039WQ02J 3.9-Inch 480 × 128 Bar Type TFT-LCD Display
Z039WQ02J is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a SPI /8080-MCU interface. Review the module specifications, product images and integration requirements before requesting a sample.
- SPI /8080-MCU
- Resolution: 480 × 128 pixels
- Module Dimensions: 105.5 × 40.61 × 2.9 mm
- Interface: SPI /8080-MCU
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.9 inch
- Screen Size
- 3.9 inch
- Resolution
- 480 × 128 pixels
- Interface
- SPI /8080-MCU
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
Z039WQ02J product introduction
Z039WQ02J is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a SPI /8080-MCU interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 105.5 × 40.61 × 2.9 mm. Brightness: 500 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z039WQ02J with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The SPI /8080-MCU connection on Z039WQ02J should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z039WQ02J attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 128 pixels
- Module Dimensions: 105.5 × 40.61 × 2.9 mm
- Interface: SPI /8080-MCU
- Brightness: 500 cd/m²
- Operating Temperature: -20 to 70 °C
- Screen Size: 3.9 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 128 pixels |
| Module Dimensions | 105.5 × 40.61 × 2.9 mm |
| Active Area | 95.04 × 25.344 mm |
| Interface | SPI /8080-MCU |
| Brightness | 500 cd/m² |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Model Size (W*H*T)mm | 105.5*40.61*2.9mm |
| Viewing | IPS |
| Pin Count | 40 pin |
| Contrast Ratio | 600:1 |
| Screen Size | 3.9 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z039WQ02J electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | SPI /8080-MCU |
| Pin Count | 40 pin |

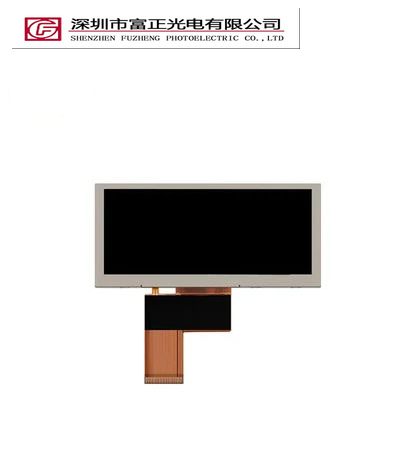

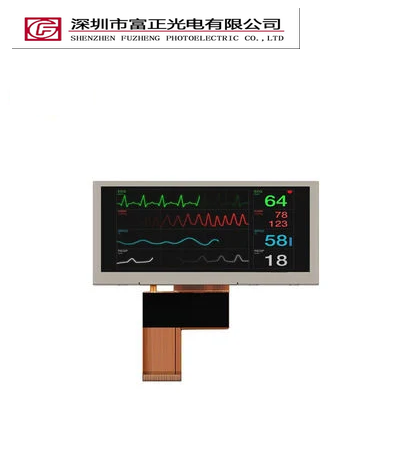

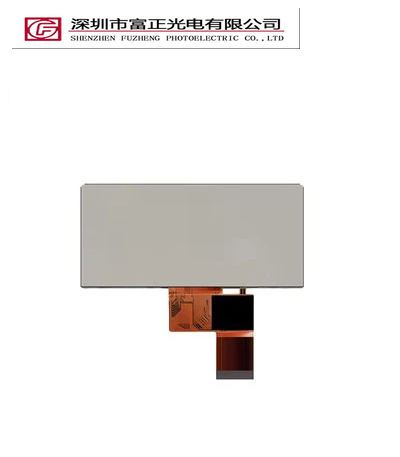

Product photographs
Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z039WQ02J against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z039WQ02J can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.9-inch display format with your available viewing area, then check 480 × 128 pixel resolution, SPI /8080-MCU host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z039WQ02J configuration.
Z039WQ02J frequently asked questions
What specifications are listed for Z039WQ02J?
Resolution: 480 × 128 pixels; Module Dimensions: 105.5 × 40.61 × 2.9 mm; Interface: SPI /8080-MCU; Brightness: 500 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 3.9 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z039WQ02J connect to a host system?
Z039WQ02J lists a SPI /8080-MCU interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z039WQ02J?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z039WQ02J so the exact assembly can be reviewed.
Where can I find the drawing for Z039WQ02J?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z039WQ02J sample?
Include the model Z039WQ02J, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z039WQ02J reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
