Model no.Z039WQ02

Z039WQ02 3.9-Inch 480 × 128 Bar Type TFT-LCD Display

SPI /8080-MCU
Resolution: 480 × 128 pixels
Module Dimensions: 105.5 × 40.61 × 2.9 mm
Interface: SPI /8080-MCU
Brightness: 500 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 3.9 inch

Screen Size: 3.9 inch
Resolution: 480 × 128 pixels
Display Mode: Normally black,Transmissive
Interface: SPI /8080-MCU
Viewing Angle: 80/80/80/80

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z039WQ02 product introduction

Z039WQ02 is a 3.9-inch bar type tft-lcd display with 480 × 128 resolution and a SPI /8080-MCU interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 105.5 × 40.61 × 2.9 mm. Brightness: 500 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z039WQ02 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The SPI /8080-MCU connection on Z039WQ02 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z039WQ02 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 480 × 128 pixels
Module Dimensions: 105.5 × 40.61 × 2.9 mm
Interface: SPI /8080-MCU
Brightness: 500 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 3.9 inch

Technical specifications

Z039WQ02 technical parameters
Parameter	Value
Resolution	480 × 128 pixels
Module Dimensions	105.5 × 40.61 × 2.9 mm
Active Area	95.04 × 25.344 mm
Interface	SPI /8080-MCU
Viewing Angle	80/80/80/80
Brightness	500 cd/m²
Viewing Direction	ALL/IPS
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	105.540.612.9mm
Display Mode	Normally Black,Transmissive
Viewing	IPS
Pin Count	40 pin
Contrast Ratio	600:1
Screen Size	3.9 inch

Interface & pin definition

Use the Z039WQ02 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z039WQ02 technical parameters
Parameter	Value
Interface	SPI /8080-MCU
Pin Count	40 pin

Product photographs

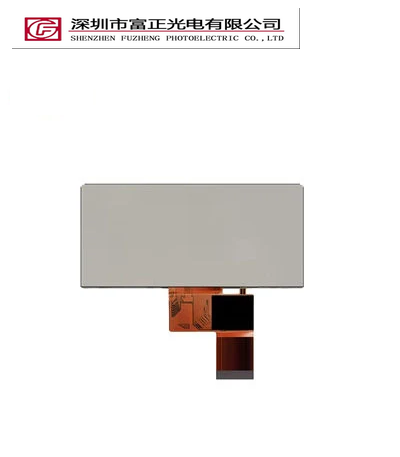

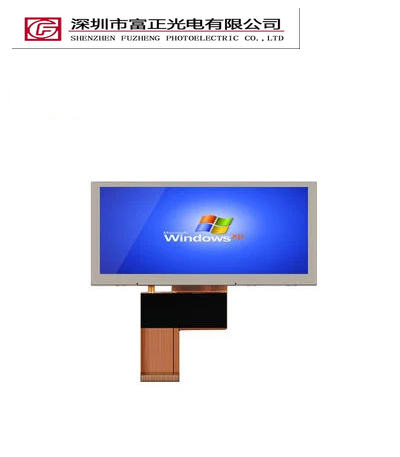

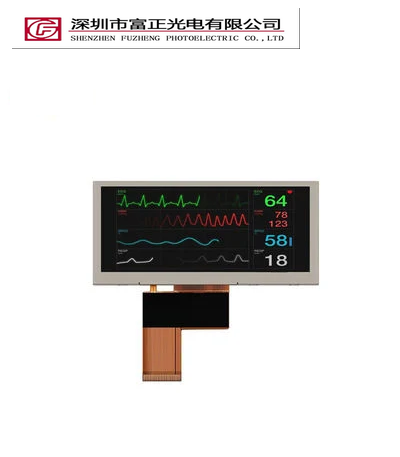

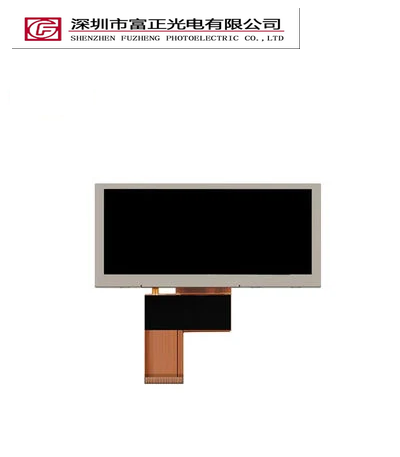

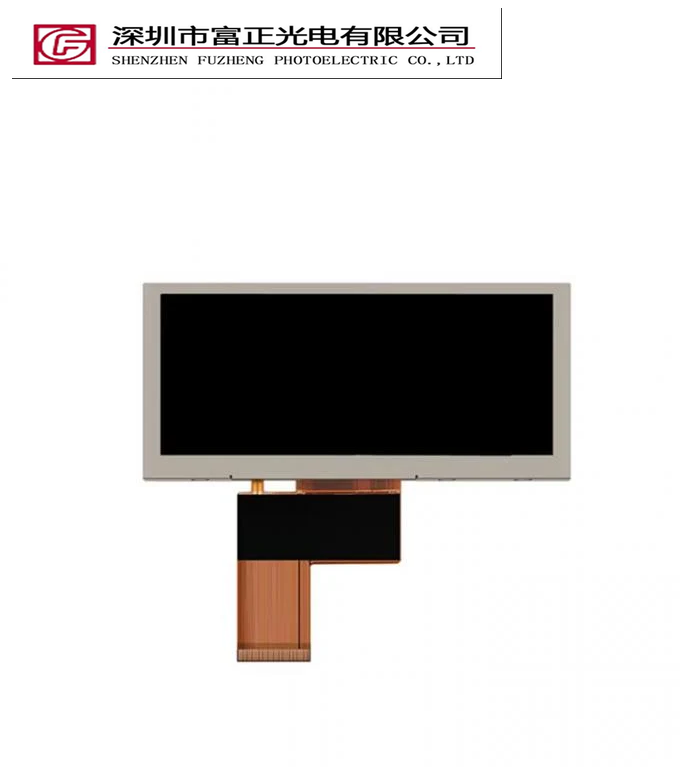

Z039WQ02 product view 1

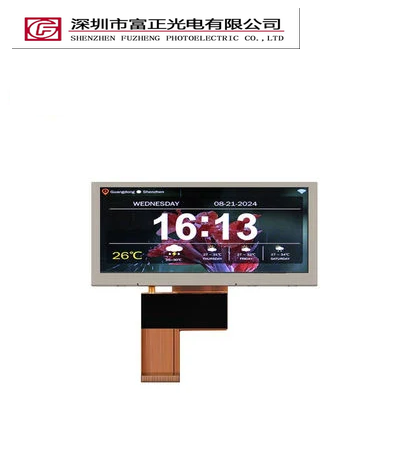

Z039WQ02 product view 2

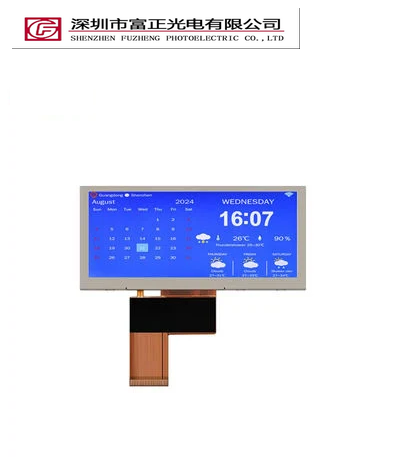

Z039WQ02 product view 3

Z039WQ02 product view 4

Z039WQ02 product view 5

Z039WQ02 product view 6

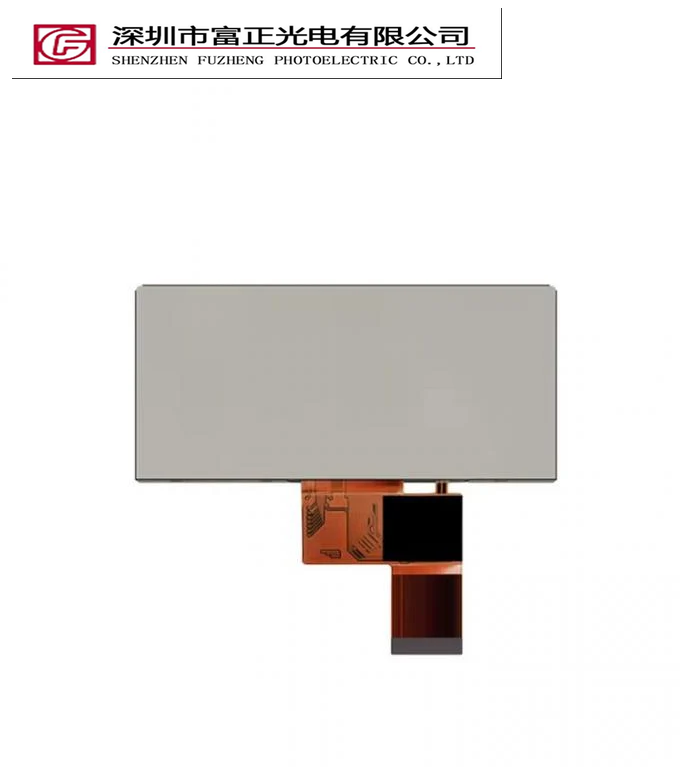

Z039WQ02 product view 7

Z039WQ02 product view 8

Mechanical drawings & documents

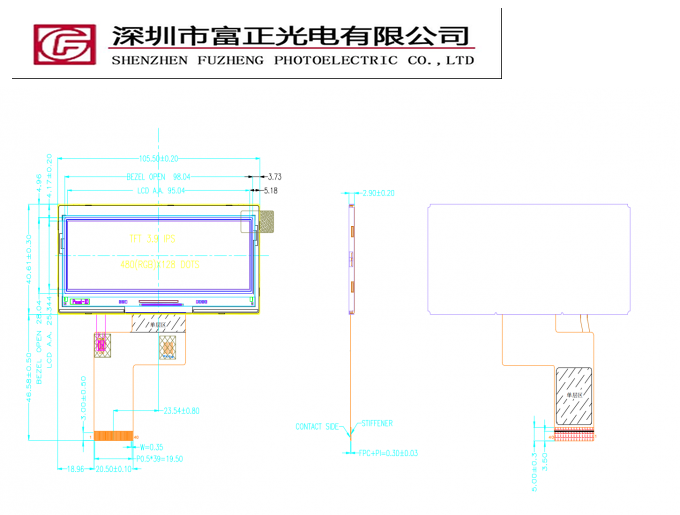

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z039WQ02 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z039WQ02 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 3.9-inch display format with your available viewing area, then check 480 × 128 pixel resolution, SPI /8080-MCU host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z039WQ02 configuration.

Z039WQ02 frequently asked questions

What specifications are listed for Z039WQ02?

Resolution: 480 × 128 pixels; Module Dimensions: 105.5 × 40.61 × 2.9 mm; Interface: SPI /8080-MCU; Brightness: 500 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 3.9 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z039WQ02 connect to a host system?

Z039WQ02 lists a SPI /8080-MCU interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z039WQ02?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z039WQ02 so the exact assembly can be reviewed.

Where can I find the drawing for Z039WQ02?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z039WQ02 sample?

Include the model Z039WQ02, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
