Model no.Z0399VG01-CT2
Z0399VG01-CT2 3.99-Inch 400 × 960 Bar Type TFT-LCD Display
Z0399VG01-CT2 is a 3.99-inch bar type tft-lcd display with 400 × 960 resolution and a 3SPI+18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- 3SPI+18 BIT RGB
- PCAP Touch
- Resolution: 400 × 960 pixels
- Module Dimensions: 50.5 × 108.58 × 3.2 mm
- Interface: 3SPI+18 BIT RGB
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: PCAP Touch
- Screen Size
- 3.99 inch
- Resolution
- 400 × 960 pixels
- Interface
- 3SPI+18 BIT RGB
- Touch
- PCAP Touch
Specification confirmation. Confirm display mode against the latest approved specification before design-in.
Z0399VG01-CT2 product introduction
Z0399VG01-CT2 is a 3.99-inch bar type tft-lcd display with 400 × 960 resolution and a 3SPI+18 BIT RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 50.5 × 108.58 × 3.2 mm. Brightness: 300 cd/m². Operating Temperature: -20 to 70 °C. Touch: PCAP Touch. Driver IC: ST7701S. Use these published characteristics to compare Z0399VG01-CT2 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The 3SPI+18 BIT RGB connection on Z0399VG01-CT2 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z0399VG01-CT2 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 400 × 960 pixels
- Module Dimensions: 50.5 × 108.58 × 3.2 mm
- Interface: 3SPI+18 BIT RGB
- Brightness: 300 cd/m²
- Operating Temperature: -20 to 70 °C
- Touch: PCAP Touch
- Driver IC: ST7701S
- Screen Size: 3.99 inch
Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 400 × 960 pixels |
| Module Dimensions | 50.5 × 108.58 × 3.2 mm |
| Active Area | 39.18 × 94.032 mm |
| Interface | 3SPI+18 BIT RGB |
| Brightness | 300 cd/m² |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Touch | PCAP Touch |
| Model Size (W*H*T) | 50.5x108.58x3.2mm |
| Viewing | IPS |
| Pin Count | 40 pin |
| Driver IC | ST7701S |
| Screen Size | 3.99 inch |
Confirm display mode against the latest approved module specification before design-in.
Interface & pin definition
Use the Z0399VG01-CT2 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | 3SPI+18 BIT RGB |
| Touch | PCAP Touch |
| Pin Count | 40 pin |
| Driver IC | ST7701S |

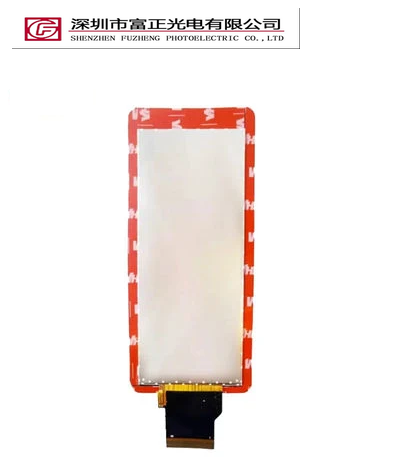

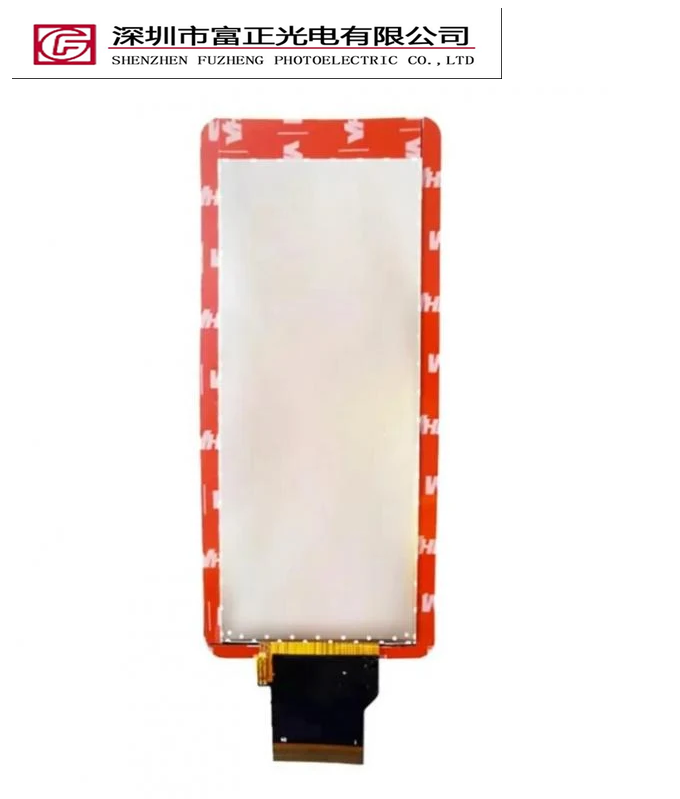

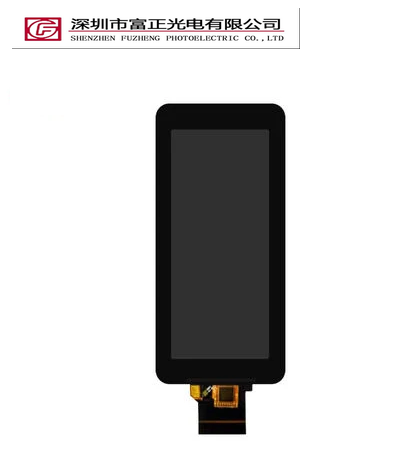

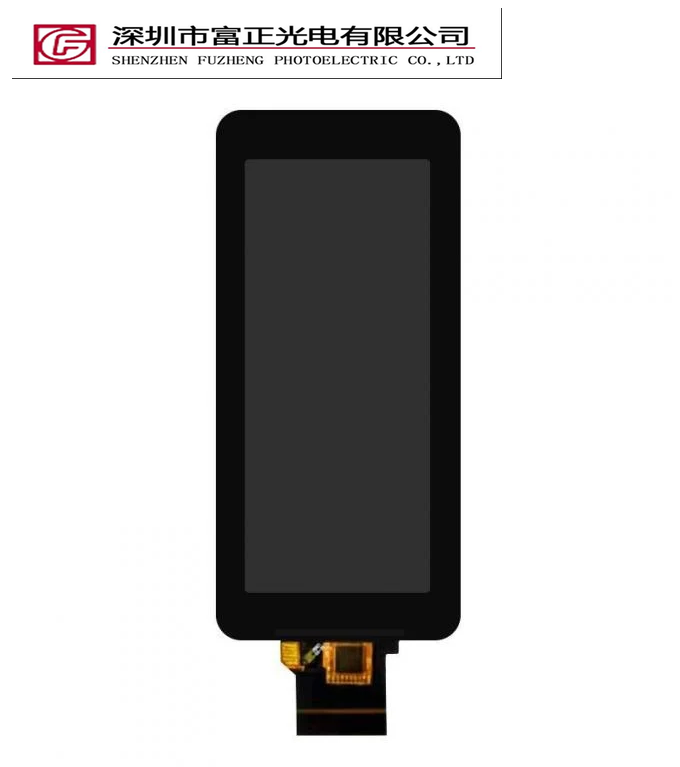

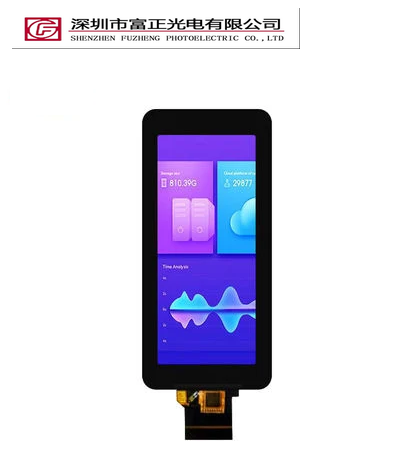

Product photographs

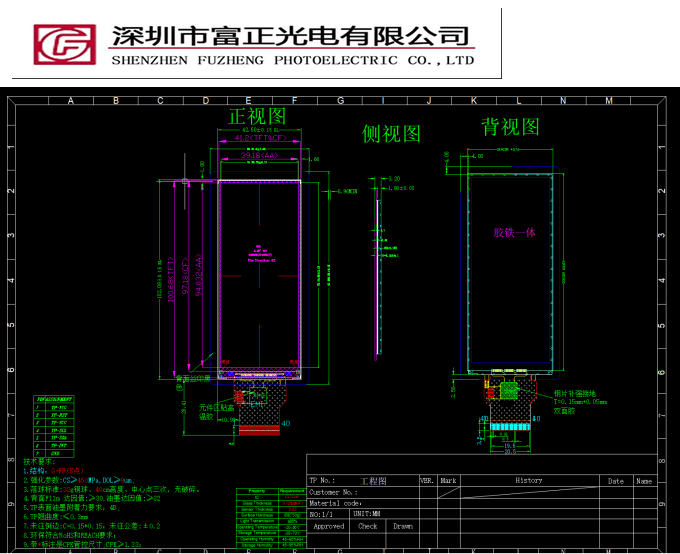

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z0399VG01-CT2 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z0399VG01-CT2 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.99-inch display format with your available viewing area, then check 400 × 960 pixel resolution, 3SPI+18 BIT RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0399VG01-CT2 configuration.
Z0399VG01-CT2 frequently asked questions
What specifications are listed for Z0399VG01-CT2?
Resolution: 400 × 960 pixels; Module Dimensions: 50.5 × 108.58 × 3.2 mm; Interface: 3SPI+18 BIT RGB; Brightness: 300 cd/m²; Operating Temperature: -20 to 70 °C; Touch: PCAP Touch; Driver IC: ST7701S; Screen Size: 3.99 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z0399VG01-CT2 connect to a host system?
Z0399VG01-CT2 lists a 3SPI+18 BIT RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z0399VG01-CT2?
The listed touch configuration is PCAP Touch. Confirm the touch controller, connector, cover lens, total thickness and application requirements with the sample request.
Where can I find the drawing for Z0399VG01-CT2?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z0399VG01-CT2 sample?
Include the model Z0399VG01-CT2, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
