Model no.Z0397WV02

Z0397WV02 4-Inch 480 × 800 Bar Type TFT-LCD Display — Ref 51817720

RGB
Resolution: 480 × 800 pixels
Module Dimensions: 57.14 × 96.85 × 2.15 mm
Interface: RGB
Brightness: 250 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: GC9305V
Screen Size: 4 inch

Screen Size: 4 inch
Resolution: 480 × 800 pixels
Interface: RGB
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Specification confirmation. Confirm display mode against the latest approved specification before design-in.

Z0397WV02 product introduction

Z0397WV02 is a 4-inch bar type tft-lcd display with 480 × 800 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 57.14 × 96.85 × 2.15 mm. Brightness: 250 cd/m². Operating Temperature: -20 to 70 °C. Driver IC: GC9305V. Use these published characteristics to compare Z0397WV02 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB connection on Z0397WV02 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z0397WV02 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 480 × 800 pixels
Module Dimensions: 57.14 × 96.85 × 2.15 mm
Interface: RGB
Brightness: 250 cd/m²
Operating Temperature: -20 to 70 °C
Driver IC: GC9305V
Screen Size: 4 inch

Technical specifications

Z0397WV02 technical parameters
Parameter	Value
Resolution	480 × 800 pixels
Module Dimensions	57.14 × 96.85 × 2.15 mm
Active Area	51.84 × 86.40 mm
Interface	RGB
Viewing Angle	85/85/85/85
Brightness	250 cd/m²
Viewing Direction	ALL/IPS
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	57.1496.852.15 mm
Driver IC	GC9305V
Pin Count	32 pin
Contrast Ratio	900:1
Screen Size	4 inch

Confirm display mode against the latest approved module specification before design-in.

Interface & pin definition

Use the Z0397WV02 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z0397WV02 technical parameters
Parameter	Value
Interface	RGB
Driver IC	GC9305V
Pin Count	32 pin

Product photographs

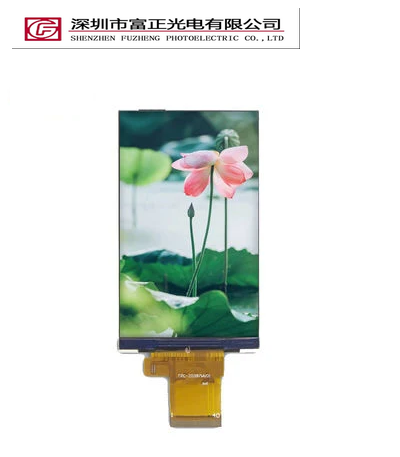

Z0397WV02 product view 1

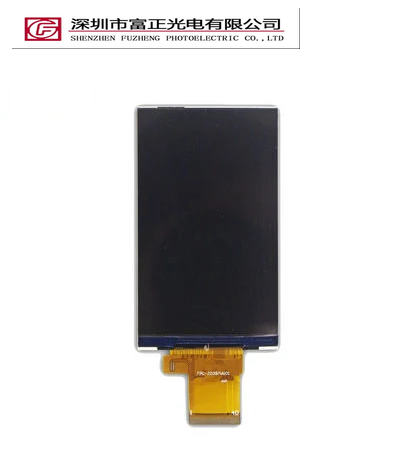

Z0397WV02 product view 2

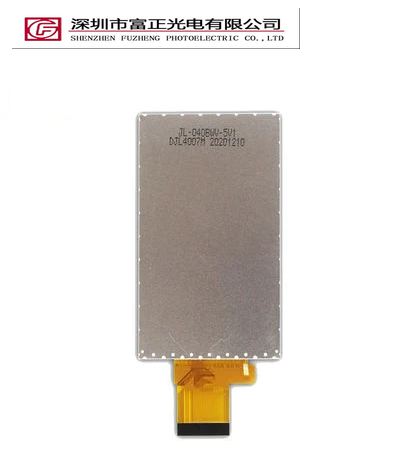

Z0397WV02 product view 3

Z0397WV02 product view 4

Z0397WV02 product view 5

Mechanical drawings & documents

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z0397WV02 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z0397WV02 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 4-inch display format with your available viewing area, then check 480 × 800 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0397WV02 configuration.

Z0397WV02 frequently asked questions

What specifications are listed for Z0397WV02?

Resolution: 480 × 800 pixels; Module Dimensions: 57.14 × 96.85 × 2.15 mm; Interface: RGB; Brightness: 250 cd/m²; Operating Temperature: -20 to 70 °C; Driver IC: GC9305V; Screen Size: 4 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z0397WV02 connect to a host system?

Z0397WV02 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z0397WV02?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0397WV02 so the exact assembly can be reviewed.

Where can I find the drawing for Z0397WV02?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z0397WV02 sample?

Include the model Z0397WV02, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
