Model no.Z0338VG01
Z0338VG01 3.38-Inch 180 × 640 Bar Type TFT-LCD Display — Ref 51672387
Z0338VG01 is a 3.38-inch bar type tft-lcd display with 180 × 640 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Interface: RGB
- Resolution: 180 × 640 pixels
- Module Dimensions: 25.72 × 83.83 × 2.1 mm
- Brightness: 300 cd/m²
- Screen Size: 3.38 inch
- Screen Size
- 3.38 inch
- Resolution
- 180 × 640 pixels
- Interface
- RGB
- Viewing Angle
- IPS, All
Z0338VG01 product introduction
Z0338VG01 is a 3.38-inch bar type tft-lcd display with 180 × 640 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Module Dimensions: 25.72 × 83.83 × 2.1 mm. Brightness: 300 cd/m². Use these published characteristics to compare Z0338VG01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on Z0338VG01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z0338VG01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Interface: RGB
- Resolution: 180 × 640 pixels
- Module Dimensions: 25.72 × 83.83 × 2.1 mm
- Brightness: 300 cd/m²
- Screen Size: 3.38 inch

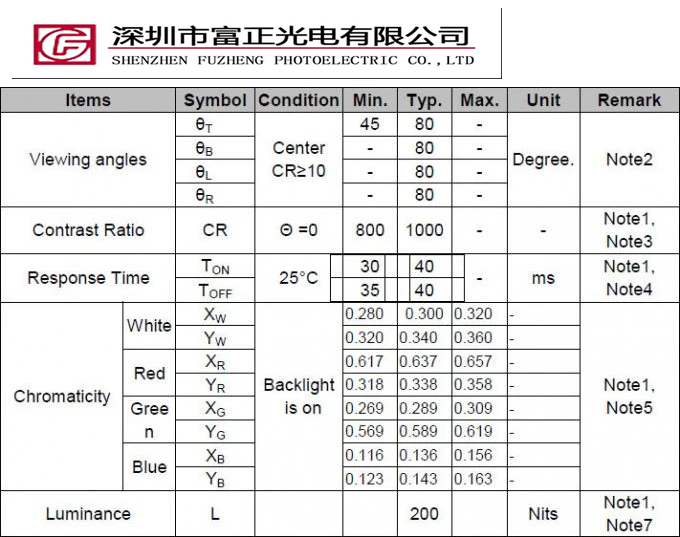

Technical specifications
| Parameter | Value |
|---|---|
| Interface | RGB |
| Contrast Ratio | 1000:1 |
| Active Area | 23.22 × 82.56 mm |
| Resolution | 180 × 640 pixels |
| Module Dimensions | 25.72 × 83.83 × 2.1 mm |
| Viewing Direction | IPS, All |
| Brightness | 300 cd/m² |
| Operation temperature | -20 to 70°C |
| Storage Temperature | -30 to 80°C |
| Screen Size | 3.38 inch |
Interface & pin definition
Use the Z0338VG01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |

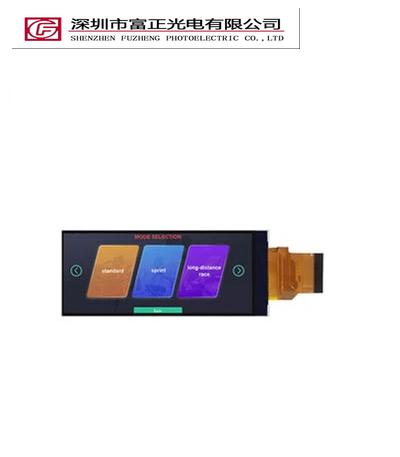

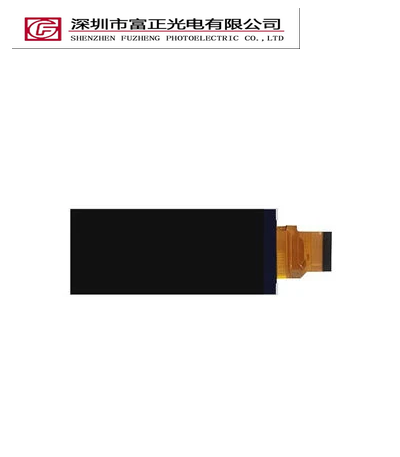

Product photographs

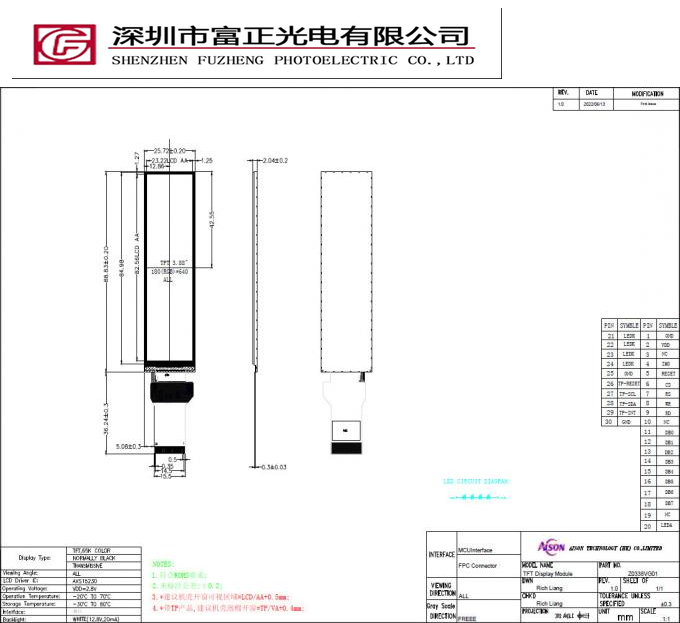

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z0338VG01 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z0338VG01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3.38-inch display format with your available viewing area, then check 180 × 640 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0338VG01 configuration.
Z0338VG01 frequently asked questions
What specifications are listed for Z0338VG01?
Interface: RGB; Resolution: 180 × 640 pixels; Module Dimensions: 25.72 × 83.83 × 2.1 mm; Brightness: 300 cd/m²; Screen Size: 3.38 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z0338VG01 connect to a host system?
Z0338VG01 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z0338VG01?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0338VG01 so the exact assembly can be reviewed.
Where can I find the drawing for Z0338VG01?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z0338VG01 sample?
Include the model Z0338VG01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
Request a quotation or sample
Send the Z0338VG01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.
