Model no.Z030WV40
Z030WV40 3-Inch 480 × 854 Bar Type TFT-LCD Display
Z030WV40 is a 3-inch bar type tft-lcd display with 480 × 854 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample.
- RGB
- Resolution: 480 × 854 pixels
- Brightness: 250 cd/m²
- Interface: RGB
- Module Dimensions: 40.04 × 73.67 × 2.2 mm
- Screen Size: 3 inch
- Screen Size
- 3 inch
- Resolution
- 480 × 854 pixels
- Interface
- RGB
- Viewing Angle
- IPS, All
Z030WV40 product introduction
Z030WV40 is a 3-inch bar type tft-lcd display with 480 × 854 resolution and a RGB interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.
Brightness: 250 cd/m². Module Dimensions: 40.04 × 73.67 × 2.2 mm. Use these published characteristics to compare Z030WV40 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.
The RGB connection on Z030WV40 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.
Product features
The following Z030WV40 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.
- Resolution: 480 × 854 pixels
- Brightness: 250 cd/m²
- Interface: RGB
- Module Dimensions: 40.04 × 73.67 × 2.2 mm
- Screen Size: 3 inch

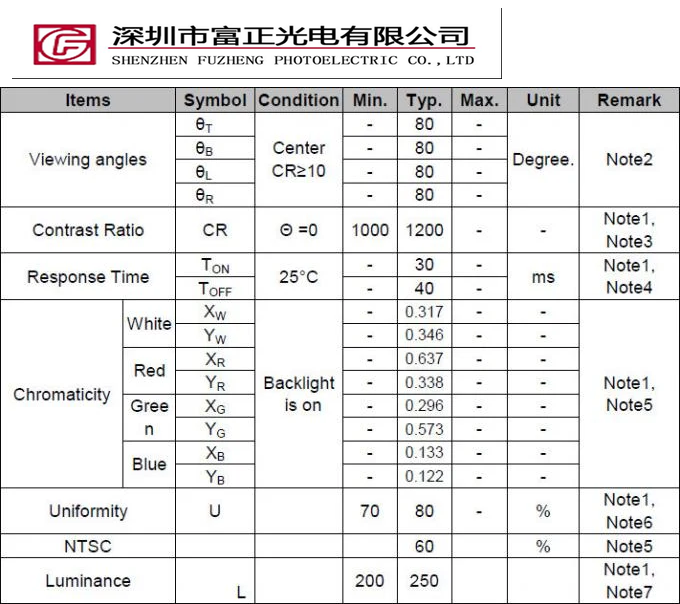

Technical specifications
| Parameter | Value |
|---|---|
| Resolution | 480 × 854 pixels |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1200:1 |
| Interface | RGB |
| Module Dimensions | 40.04 × 73.67 × 2.2 mm |
| Active Area | 36.72 × 65.27976 mm |
| Viewing Direction | IPS, All |
| Operation temperature | -20 to 70°C |
| Storage Temperature | -30 to 80 °C |
| Screen Size | 3 inch |
Interface & pin definition
Use the Z030WV40 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.
| Parameter | Value |
|---|---|
| Interface | RGB |

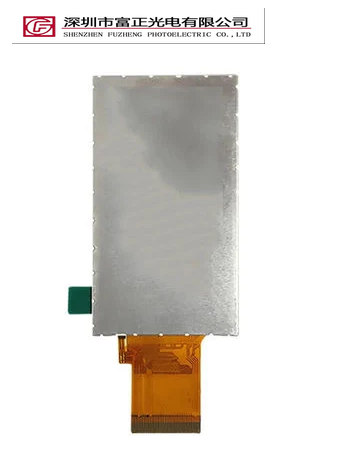

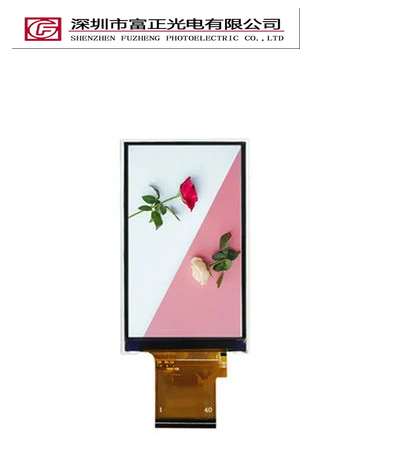

Product photographs

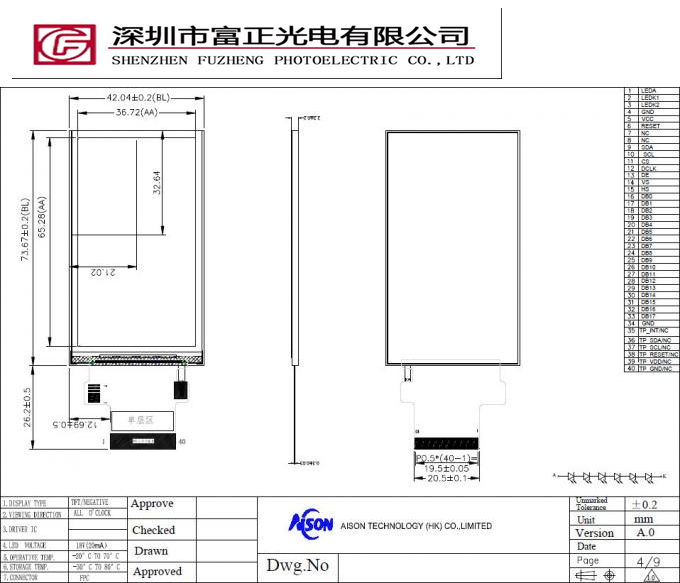

Mechanical drawings & documents
Check the dimensions, active area, connector position and cable clearance of Z030WV40 against the enclosure. Confirm the drawing revision before tooling.
Application & selection guidance
Z030WV40 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.
Compare the 3-inch display format with your available viewing area, then check 480 × 854 pixel resolution, RGB host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z030WV40 configuration.
Z030WV40 frequently asked questions
What specifications are listed for Z030WV40?
Resolution: 480 × 854 pixels; Brightness: 250 cd/m²; Interface: RGB; Module Dimensions: 40.04 × 73.67 × 2.2 mm; Screen Size: 3 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.
How should Z030WV40 connect to a host system?
Z030WV40 lists a RGB interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.
Is touch information available for Z030WV40?
A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z030WV40 so the exact assembly can be reviewed.
Where can I find the drawing for Z030WV40?
The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.
What should I send when requesting a Z030WV40 sample?
Include the model Z030WV40, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.
