Product images and mechanical references for this assembly. Confirm the selected model and drawing revision before design-in.

Model no.Z0299WV01

Z0299WV01 2.99-Inch 268 × 800 Bar Type TFT-LCD Display

RGB 18BIT+SPI3W
Resolution: 268 × 800 pixels
Module Dimensions: 26.96 × 80.08 × 1.72 mm
Interface: RGB 18BIT+SPI3W
Brightness: 800 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2.99 inch

Screen Size: 2.99 inch
Resolution: 268 × 800 pixels
Display Mode: Normally black,Transmissive
Interface: RGB 18BIT+SPI3W
Viewing Angle: 85/85/85/85

Review the listed module configuration and confirm the matching specification and drawing revision with your inquiry.

Z0299WV01 product introduction

Z0299WV01 is a 2.99-inch bar type tft-lcd display with 268 × 800 resolution and a RGB 18BIT+SPI3W interface. Review the module specifications, product images and integration requirements before requesting a sample. The bar type tft displays format helps define the display area and user-interface layout while the exact model reference keeps the optical, electrical and mechanical requirements tied to one assembly.

Module Dimensions: 26.96 × 80.08 × 1.72 mm. Brightness: 800 cd/m². Operating Temperature: -20 to 70 °C. Use these published characteristics to compare Z0299WV01 with the requirements of your equipment. Brightness, viewing direction and touch operation should be evaluated in the intended enclosure, lighting and user environment.

The RGB 18BIT+SPI3W connection on Z0299WV01 should be checked against the host controller and connector arrangement. Review supply levels, backlight drive, cable routing and the matching pin assignment before connecting a sample. A shared interface name alone does not establish compatibility between two modules.

Product features

The following Z0299WV01 attributes are listed for this assembly. Select the module by the requirements that affect your product, including the optical output, controller interface and mechanical envelope.

Resolution: 268 × 800 pixels
Module Dimensions: 26.96 × 80.08 × 1.72 mm
Interface: RGB 18BIT+SPI3W
Brightness: 800 cd/m²
Operating Temperature: -20 to 70 °C
Screen Size: 2.99 inch

Technical specifications

Z0299WV01 technical parameters
Parameter	Value
Resolution	268 × 800 pixels
Module Dimensions	26.96 × 80.08 × 1.72 mm
Active Area	24.12 × 72 mm
Interface	RGB 18BIT+SPI3W
Viewing Angle	85/85/85/85
Brightness	800 cd/m²
Viewing Direction	ALL/IPS
Operating Temperature	-20 to 70 °C
Storage Temperature	-30 to 80 °C
Model Size (WHT)mm	26.9680.081.72mm
Display Mode	Normally Black,Transmissive
Viewing	IPS
Pin Count	40 pin
Contrast Ratio	1200:1
Screen Size	2.99 inch

Interface & pin definition

Use the Z0299WV01 electrical documentation to confirm pin numbering, signal direction, voltage limits, backlight connections and any touch-controller wiring. The connector and FPC arrangement must match the host electronics and the quoted assembly.

Z0299WV01 technical parameters
Parameter	Value
Interface	RGB 18BIT+SPI3W
Pin Count	40 pin

Product photographs

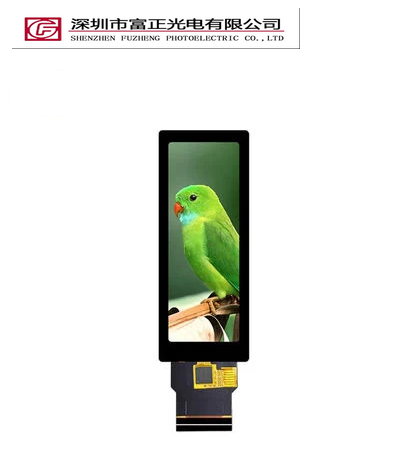

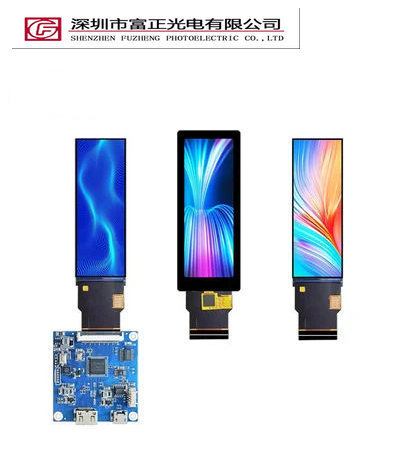

Z0299WV01 product view 1

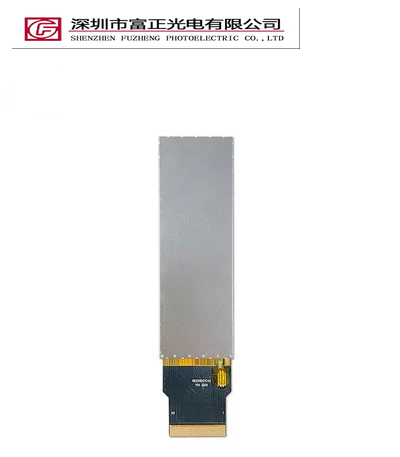

Z0299WV01 product view 2

Z0299WV01 product view 3

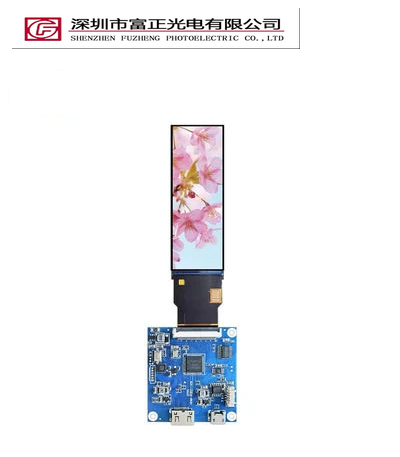

Z0299WV01 product view 4

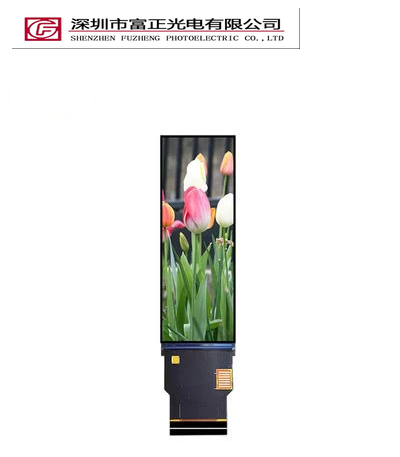

Z0299WV01 product view 5

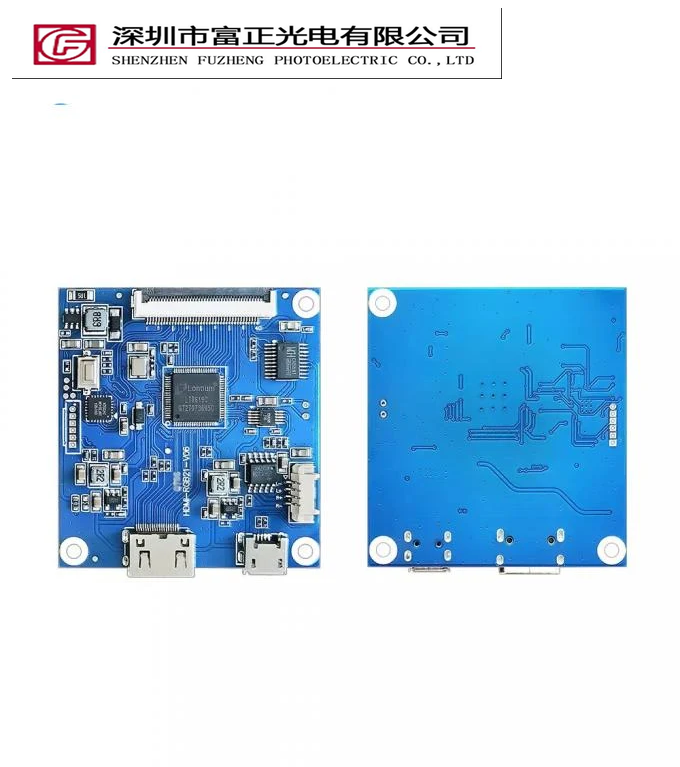

Z0299WV01 product view 6

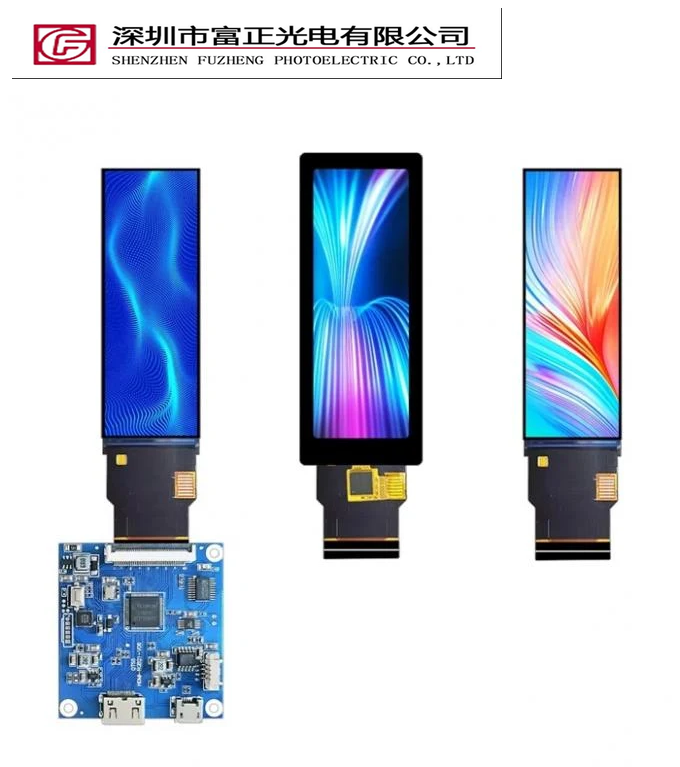

Z0299WV01 product view 7

Mechanical drawings & documents

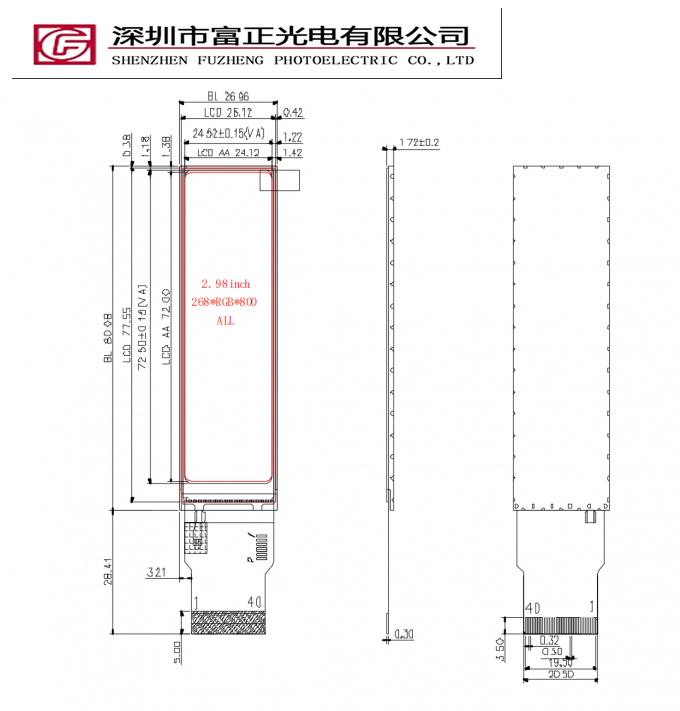

Mechanical reference 1 — open full size to inspect dimensions.

Check the dimensions, active area, connector position and cable clearance of Z0299WV01 against the enclosure. Confirm the drawing revision before tooling.

Application & selection guidance

Z0299WV01 can be evaluated for equipment user interfaces and embedded instruments and control panels. These are integration directions: suitability depends on the final optical, electrical, mechanical and environmental requirements.

Compare the 2.99-inch display format with your available viewing area, then check 268 × 800 pixel resolution, RGB 18BIT+SPI3W host connectivity, touch operation and power requirements. Evaluate a sample in the real enclosure before approving production. Share the target conditions and quantity so Fuzheng can review the selected Z0299WV01 configuration.

Z0299WV01 frequently asked questions

What specifications are listed for Z0299WV01?

Resolution: 268 × 800 pixels; Module Dimensions: 26.96 × 80.08 × 1.72 mm; Interface: RGB 18BIT+SPI3W; Brightness: 800 cd/m²; Operating Temperature: -20 to 70 °C; Screen Size: 2.99 inch. Confirm the selected assembly and latest drawing revision when requesting a quotation.

How should Z0299WV01 connect to a host system?

Z0299WV01 lists a RGB 18BIT+SPI3W interface. Check the pin assignment, connector, logic voltage, timing and initialization against your host controller. Do not apply power based only on a similar product photograph.

Is touch information available for Z0299WV01?

A fixed touch configuration is not specified in this record. Include your touch, cover-lens and controller requirements in the inquiry for Z0299WV01 so the exact assembly can be reviewed.

Where can I find the drawing for Z0299WV01?

The drawing section contains 1 model-associated mechanical reference image. Open it at full size and confirm the model suffix, tolerances and revision before enclosure design or tooling.

What should I send when requesting a Z0299WV01 sample?

Include the model Z0299WV01, target interface, touch and cover-lens requirements, operating environment, sample quantity and estimated production quantity. Share a host schematic or enclosure drawing when available so electrical and mechanical fit can be reviewed.

Request a quotation or sample

Send the Z0299WV01 reference together with the interface, touch, enclosure, sample quantity and production schedule. Fuzheng will review the matching module and document requirements with your inquiry.

Request a Z0299WV01 quote or evaluation sample →

Discuss this display with our team

Z0299WV01

Share the required interface, touch assembly, quantity and project timing. Pricing and availability are confirmed by inquiry.

Start a product inquiry →
